FMWAN062-20SF

Antennas RF Overview

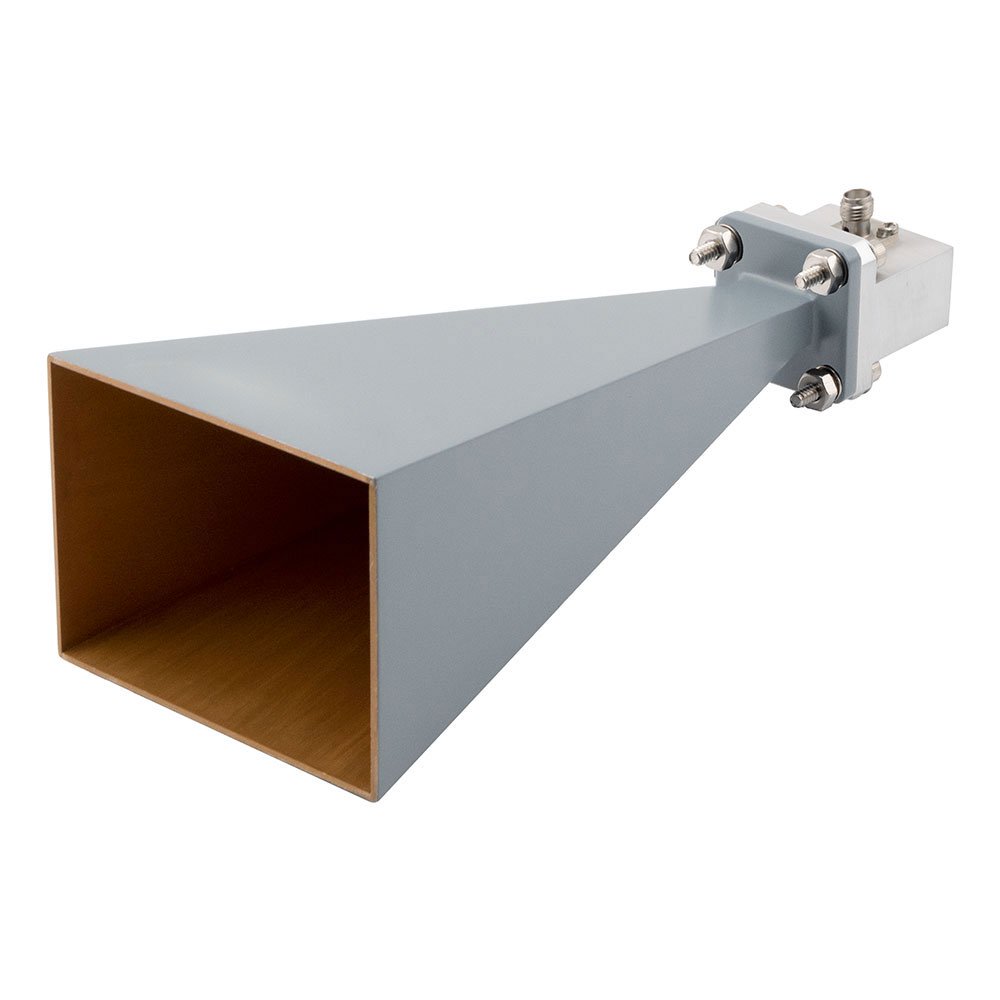

The FMWAN062-20SF is a WR-62 standard gain horn antenna manufactured by Fairview Microwave. It operates within a frequency range of 12.4 GHz to 18 GHz and provides a nominal gain of 20 dBi. The unit features an SMA female connector interface for signal transmission. Designed for outdoor applications, it utilizes a screw mounting style for secure installation. The component is packaged in a bag for handling and shipping.

Antennas RF Feature Summary

• Standard gain horn design optimized for high-frequency performance
• SMA female connector interface for direct integration
• Durable construction suitable for outdoor environmental conditions

Antennas RF Applications

• Point-to-point microwave communication links
• Radar system test and measurement setups
• Satellite ground station receiving arrays

Antennas RF Procurement Notes

Verify the specific SMA connector gender and WR-62 waveguide dimensions against your system requirements before ordering. Confirm that the operating frequency range of 12.4 GHz to 18 GHz aligns with your application needs. Check local import regulations for RF components. Ensure proper handling procedures are followed due to the precision nature of the horn antenna structure.

Antennas RF Selection Notes

Select this model when a fixed 20 dBi gain is required within the 12.4–18 GHz band. The SMA interface simplifies connection to compatible test equipment or feed lines. Consider the physical size and weight for mounting infrastructure. Evaluate if the standard gain level meets link budget calculations compared to higher-gain parabolic alternatives.

Antennas RF Part Context

This component belongs to the Fairview Microwave ProLine antenna series, which focuses on reliable RF solutions for wireless and radar systems. The WR-62 designation indicates compatibility with standard rectangular waveguide dimensions for the K-band frequency range. It serves as a passive radiating element within larger microwave transmission chains.

Antennas RF Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Alternative models may require verification of exact gain specifications, connector types, and waveguide flange standards to ensure mechanical and electrical compatibility.
