FMWAN1068

Antennas RF Overview

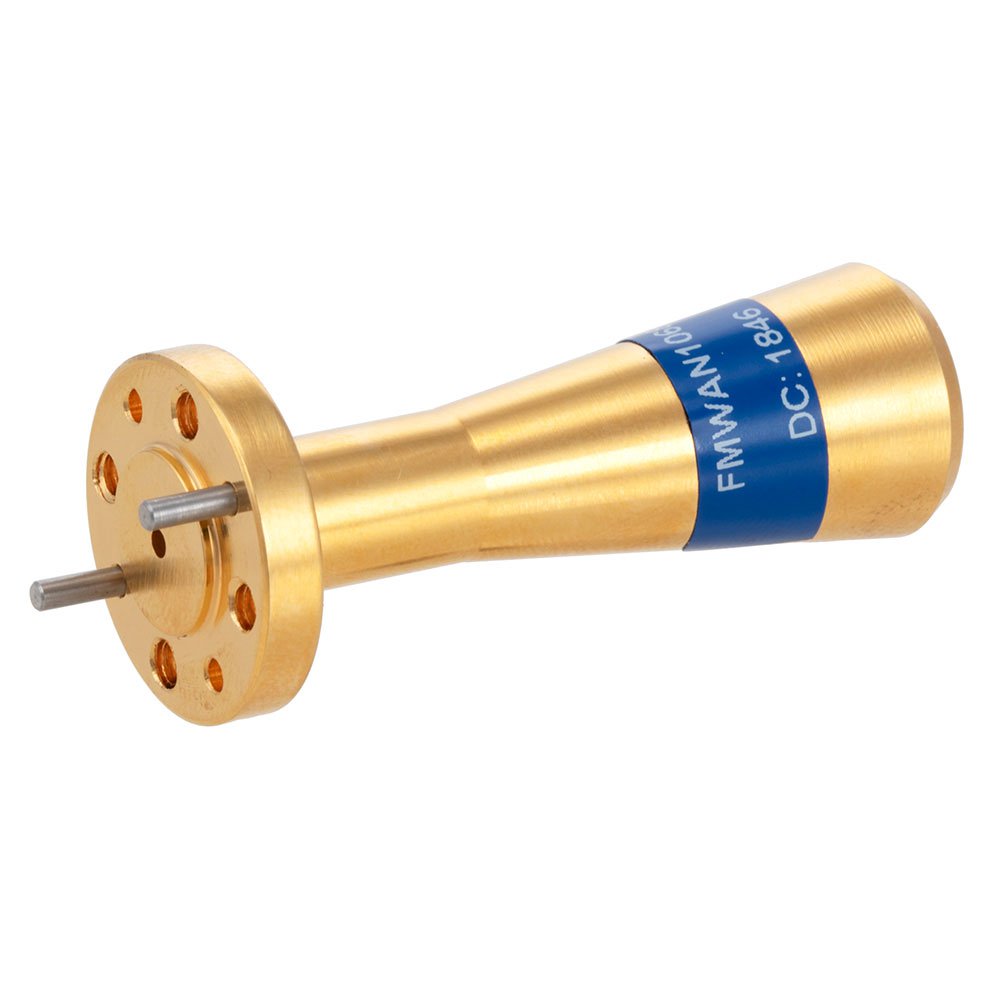

The FMWAN1068 is a standard gain horn waveguide antenna manufactured by Fairview Microwave. It operates within the frequency range of 40 GHz to 60 GHz and features a nominal gain of 25 dBi. The unit utilizes a WR-19 waveguide interface and includes a UG-383/U-MOD round cover flange for mounting. Designed as an outdoor antenna, it provides directional signal transmission and reception capabilities suitable for high-frequency microwave applications.

Antennas RF Feature Summary

• Standard gain horn design for consistent directional performance
• Operates in the 40 GHz to 60 GHz millimeter-wave spectrum
• Includes UG-383/U-MOD round cover flange for secure installation

Antennas RF Applications

• Microwave point-to-point communication links
• Radar system testing and development
• Satellite ground station uplink/downlink interfaces

Antennas RF Procurement Notes

Verify the specific flange configuration and waveguide size compatibility with existing infrastructure before procurement. Confirm that the operating environment supports outdoor deployment given the antenna classification. Ensure that the receiving equipment matches the 40 GHz to 60 GHz frequency range to utilize the specified 25 dBi gain effectively.

Antennas RF Selection Notes

Select this model when a fixed-gain, high-directivity solution is required for the E-band or V-band frequencies. The WR-19 interface dictates mechanical compatibility with other waveguide components. Consider the physical dimensions and wind load requirements associated with horn antennas for structural mounting planning.

Antennas RF Part Context

Fairview Microwave produces specialized RF components including antennas, cables, and connectors. The FMWAN1068 belongs to their outdoor antenna portfolio, targeting applications requiring precise beam control at millimeter-wave frequencies. This product line supports telecommunications, defense, and research sectors needing reliable high-frequency hardware.

Antennas RF Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify mechanical fitment and electrical specifications against alternative horn antennas from other manufacturers if sourcing constraints exist.
