FMWAN1089

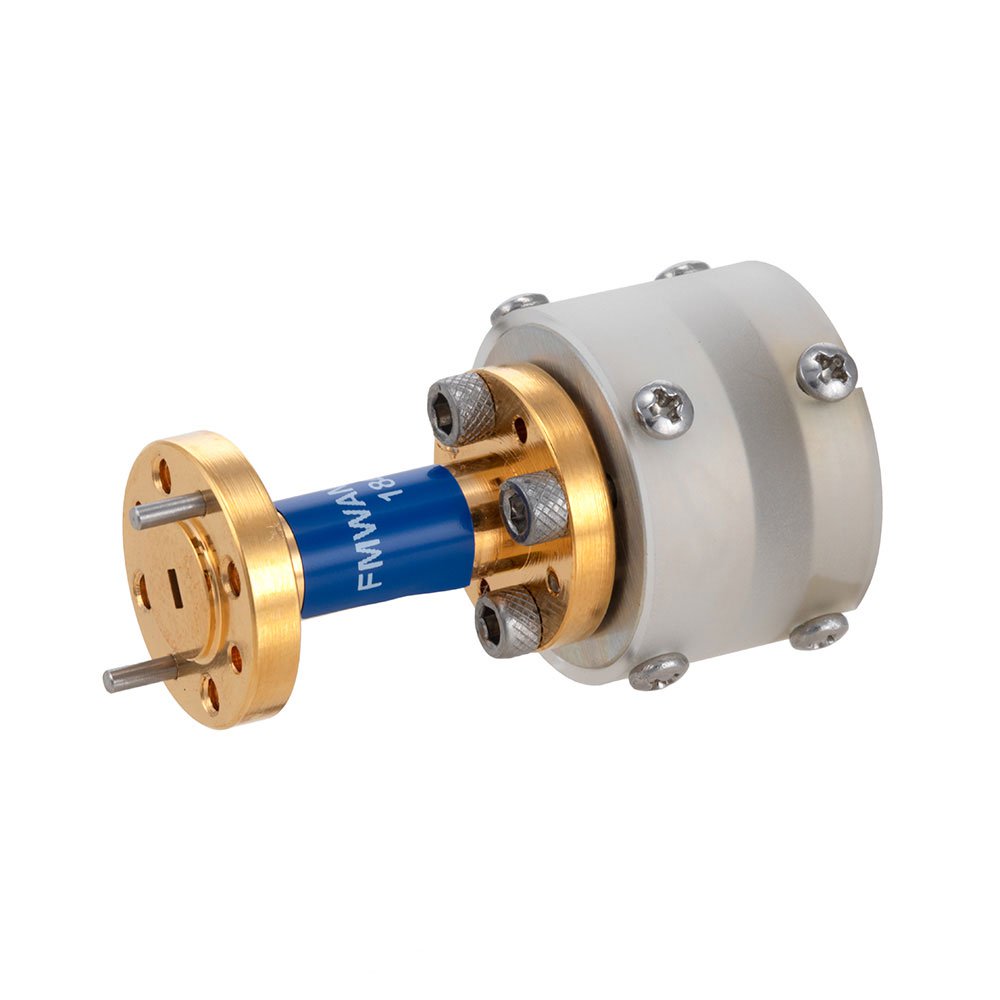

Description：WG ANTENNA WR-10 89-99 GHZ
Series：-
Mfr：Fairview Microwave
Package：Bag

SKU:a1232ecc6a53 Category: RF Antennas Brand: Fairview Microwave

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

FMWAN1089 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Fairview Microwave. Its product description is WG ANTENNA WR-10 89-99 GHZ. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for FMWAN1089

Description：WG ANTENNA WR-10 89-99 GHZ
Series：-
Mfr：Fairview Microwave
Package：Bag
RF Family/Standard：General ISM
Frequency Group：SHF (f > 4GHz)
Frequency (Center/Band)：94GHz
Frequency Range：89GHz ~ 99GHz
Antenna Type：Horn
Number of Bands：1
VSWR：1.3
Return Loss：-
Gain：2dBi
Features：-
Termination：Screw-Mount
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Waveguide Mount
Height (Max)：0.680" (17.27mm)
Applications：General Purpose
Power - Max：-

Antennas RF datasheet and documents for FMWAN1089

FMWAN1089

Antennas RF Overview

The FMWAN1089 is a WR-10 waveguide omni-directional antenna manufactured by Fairview Microwave. It operates within the frequency range of 89 GHz to 99 GHz. The component provides a nominal gain of 2.0 dBi and maintains a Voltage Standing Wave Ratio (VSWR) of 1.3. It utilizes a screw-mount termination type and features a maximum height of 0.680 inches (17.27 mm).

Antennas RF Feature Summary

Omni-directional radiation pattern for broad coverage.
WR-10 waveguide interface design.
Screw-mount termination configuration.

Antennas RF Applications

Millimeter-wave communication systems
High-frequency radar applications
Scientific research instrumentation

Antennas RF Procurement Notes

Verify the WR-10 waveguide interface compatibility with existing system components before procurement. Confirm that the operating environment supports the specified 89 GHz to 99 GHz frequency range. Ensure mechanical mounting provisions align with the screw-mount termination style and physical dimensions provided in the technical specifications.

Antennas RF Selection Notes

Select this model when an omni-directional solution is required for the W-band spectrum. The WR-10 form factor dictates specific integration requirements compared to coaxial alternatives. Consider the low gain characteristic suitable for short-range or distributed sensing scenarios rather than high-directivity long-range links.

Antennas RF Part Context

This component belongs to the Fairview Microwave RF antenna portfolio, specifically designed for millimeter-wave frequencies. It serves as a passive radiating element within larger RF test and measurement setups or communication subsystems requiring operation in the 89 GHz to 99 GHz band.

Antennas RF Replacement Considerations

Direct substitutes must match the WR-10 waveguide interface and the 89 GHz to 99 GHz operational bandwidth. Alternative models should be evaluated based on similar VSWR performance and mounting constraints to ensure seamless integration without significant system redesign.
