FMWAN112-20ELNF

Antennas RF Overview

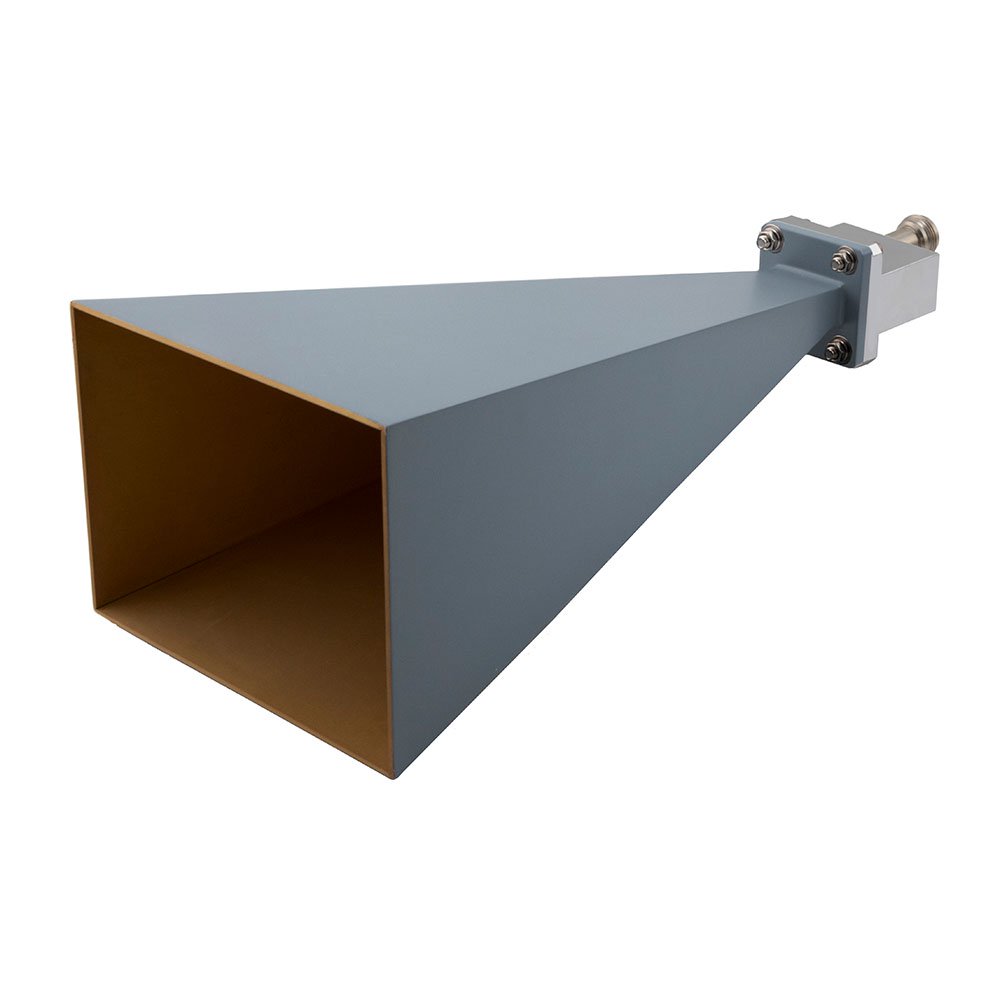

The FMWAN112-20ELNF is a WR-112 standard gain horn antenna manufactured by Fairview Microwave. It provides a nominal gain of 20 dBi and operates within the frequency range of 7.05 GHz to 10 GHz. The component features an End Launch N Female connector interface, facilitating integration into waveguide systems requiring this specific connection type.

Antennas RF Feature Summary

• Standard gain horn design optimized for WR-112 waveguide applications
• End Launch N Female connector configuration for secure interfacing
• Operational frequency coverage spanning 7.05 GHz to 10 GHz

Antennas RF Applications

• Microwave measurement systems
• Waveguide test setups
• RF signal transmission links

Antennas RF Procurement Notes

Verify the exact model designation FMWAN112-20ELNF against official Fairview Microwave documentation to confirm the End Launch N Female connector specification. Ensure compatibility with WR-112 waveguide dimensions before procurement. Cross-reference datasheets for precise mechanical tolerances and electrical performance limits.

Antennas RF Selection Notes

Select this component when a WR-112 standard gain horn with 20 dBi gain is required. The End Launch N Female interface dictates system connectivity requirements. Confirm that the 7.05 GHz to 10 GHz operational band aligns with the intended application spectrum needs.

Antennas RF Part Context

This antenna belongs to the Fairview Microwave WR-112 waveguide product line. It serves as a passive RF interconnect component designed for high-frequency microwave applications. The standard gain horn architecture ensures predictable radiation patterns within its specified bandwidth.

Antennas RF Replacement Considerations

FMWAN112-20 is a related variant in the same series but lacks the ELNF suffix, indicating a different connector configuration. Verify connector types carefully when substituting.
