FMWPR008-7

Antennas RF Overview

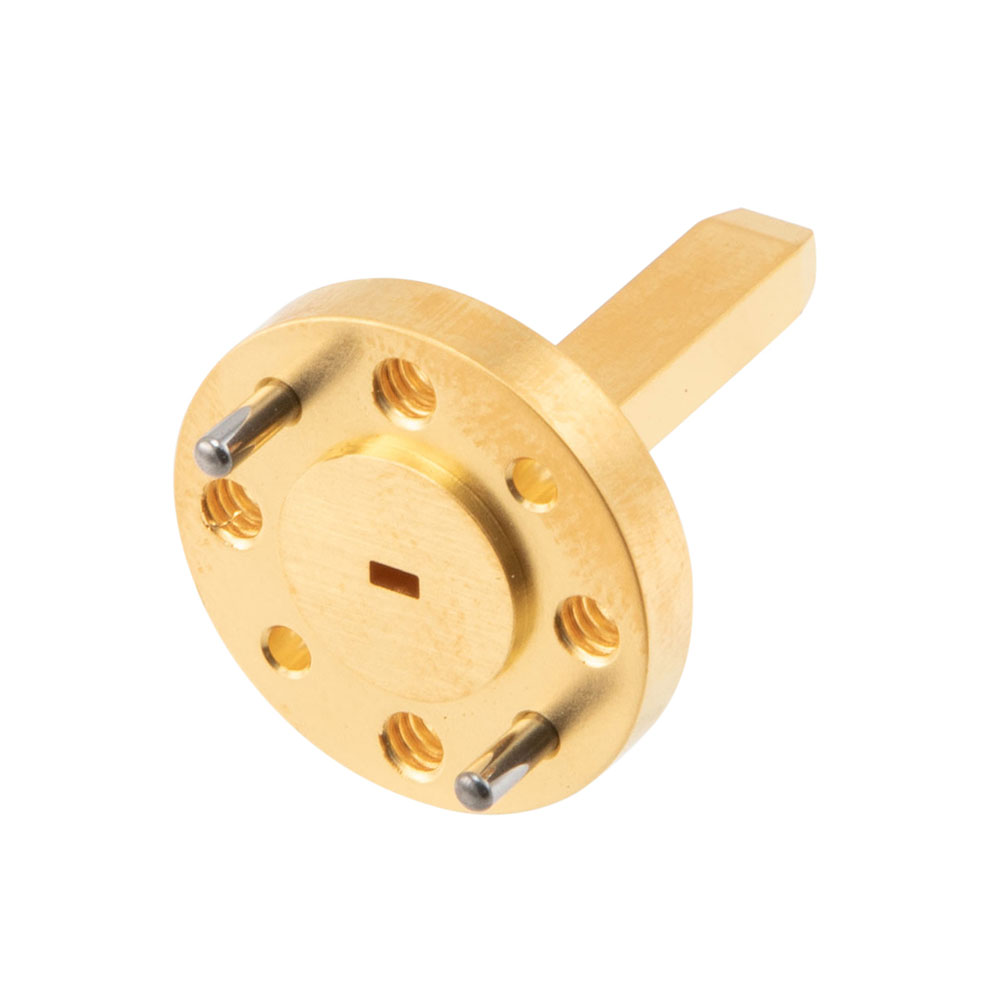

The FMWPR008-7 is a waveguide probe antenna manufactured by Fairview Microwave. It operates within the WR-8 waveguide frequency range of 90 GHz to 140 GHz. This component functions as a high-frequency signal transducer, converting guided waves in the rectangular waveguide structure into free-space electromagnetic radiation for testing and measurement applications.

Antennas RF Feature Summary

• Designed specifically for the WR-8 waveguide standard
• Operates effectively across the 90 GHz to 140 GHz spectrum
• Constructed as a probe-type antenna element

Antennas RF Applications

• Millimeter-wave test and measurement setups
• Waveguide system characterization
• High-frequency signal transmission analysis

Antennas RF Procurement Notes

Verify availability through authorized distributors as supply status may vary. Confirm that the specific application environment supports the WR-8 waveguide interface and the designated frequency range before finalizing procurement decisions.

Antennas RF Selection Notes

Select this component when a dedicated WR-8 waveguide probe is required for frequencies between 90 GHz and 140 GHz. Ensure compatibility with existing waveguide flange standards and system impedance requirements for optimal performance integration.

Antennas RF Part Context

Fairview Microwave provides specialized RF and microwave components. The FMWPR008-7 belongs to their waveguide antenna series, addressing needs for precise signal radiation and reception in millimeter-wave bands using standardized waveguide interfaces.

Antennas RF Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Verify mechanical dimensions and electrical specifications against alternative waveguide probes if sourcing from different manufacturers.
