G280626G802

Overview

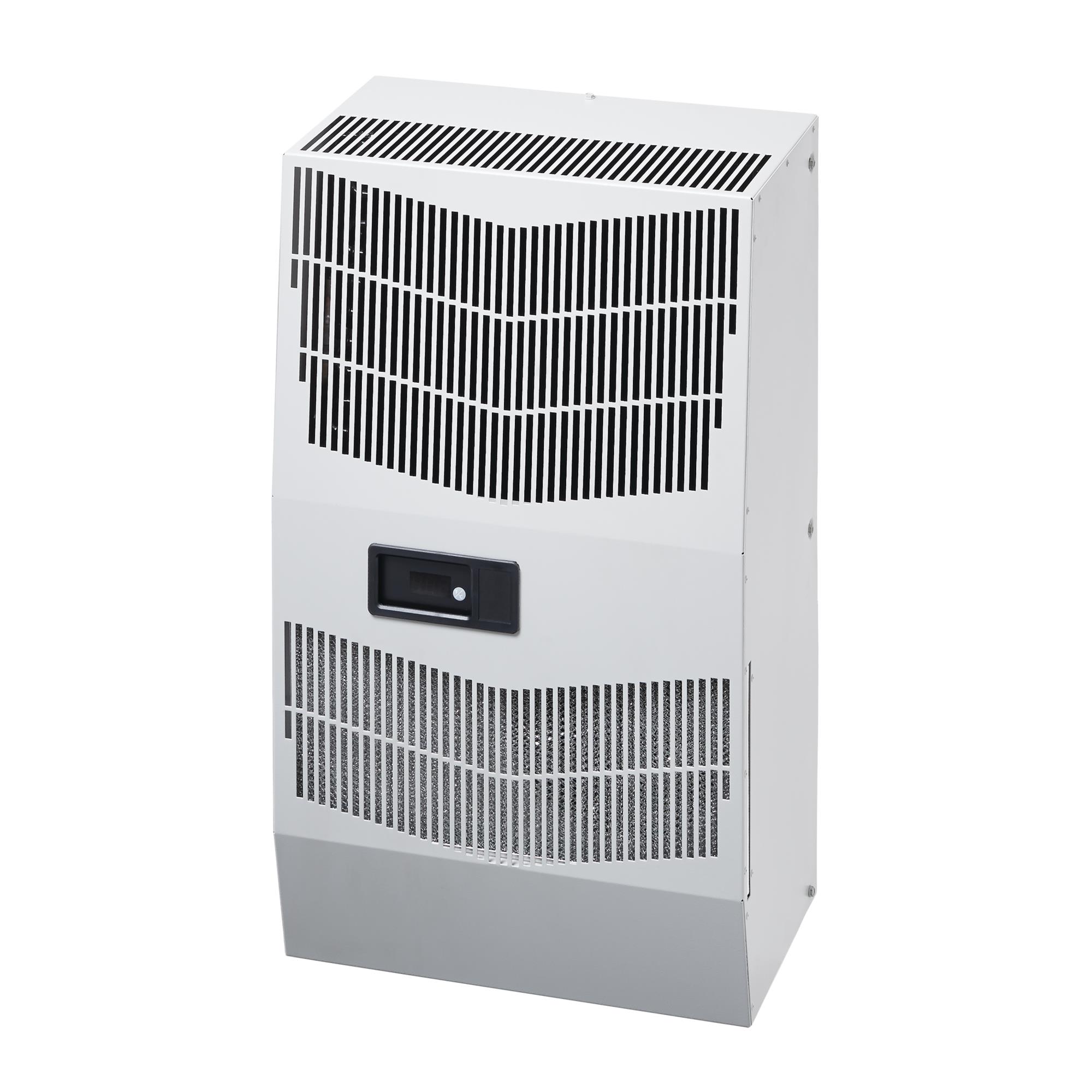

The G280626G802 is a Spectracool series enclosure air conditioner manufactured by Hoffman Enclosures, Inc. It features a sealed design with a cooling capacity of 6000 BTU/hr. The unit operates on 230 V AC single-phase power, drawing 4.7/5.9 A. Physical dimensions are 726 mm in length, 432 mm in width, and 259 mm in height. Constructed from stainless steel, it provides robust environmental protection for industrial control enclosures.

Feature Summary

• Sealed compressor design ensures reliable operation without refrigerant leakage risks.
• Stainless steel construction provides high durability and corrosion resistance.
• Mechanical thermostat control allows for precise temperature management.

Applications

• Cooling industrial control panels requiring 6000 BTU/hr capacity
• Enclosures exposed to harsh or corrosive environments due to stainless steel build
• Applications utilizing 230 V AC single-phase power supplies

Procurement Notes

Verify the specific voltage requirement of 230 V AC against the site power supply before procurement. Confirm that the physical dimensions (726 x 432 x 259 mm) fit within the target enclosure cutout. Ensure the mounting configuration matches the existing panel structure. Check for any required accessories such as mounting kits or filters not included in the base unit description.

Selection Notes

Select this model when a sealed cooling solution is preferred over thermoelectric units for higher heat loads. The stainless steel material is critical for applications involving chemical exposure or washdowns. Verify that the 6000 BTU/hr rating adequately exceeds the internal heat dissipation of the equipment. Consider the single-phase power availability at the installation site.

Part Context

This component belongs to the McLean Spectracool G28 series of enclosure air conditioners. These units are designed specifically for nVent HOFFMAN enclosures but can be adapted for other standard sizes. The series focuses on providing efficient thermal management for sensitive electronic components in demanding industrial settings.

Replacement Considerations

Direct replacements must match the 6000 BTU/hr capacity and 230 V AC input. Verify dimensional compatibility with the existing enclosure opening. Units from the same G28 series with identical specifications may serve as substitutes if available.
