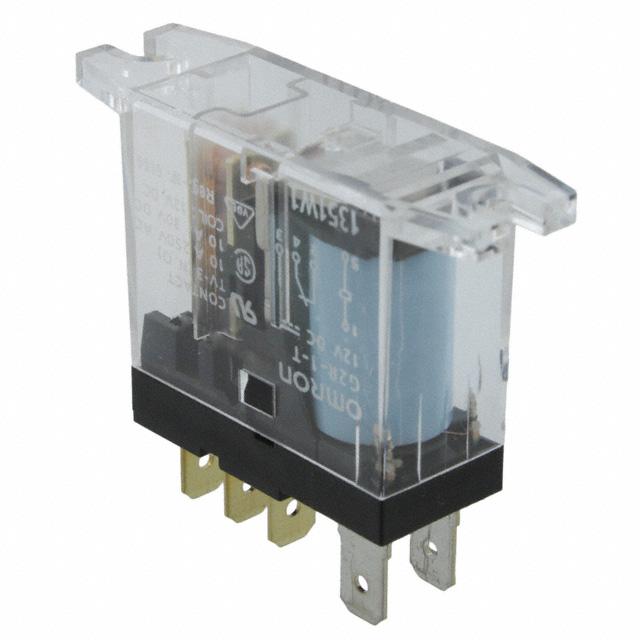

G2R-1-T-AC120

G2R-1-T-AC120 is listed in the Power Relays, Over 2 Amps range at ChipApex. The manufacturer field lists Omron Automation and Safety. Its product description is RELAY GEN PURPOSE SPDT 10A 120V. Review the specifications below when checking this part for your BOM.

Power Relays, Over 2 Amps specifications for G2R-1-T-AC120

• Description：RELAY GEN PURPOSE SPDT 10A 120V
• Series：G2R
• Mfr：Omron Automation and Safety
• Package：Tray
• Mounting Type：Chassis Mount
• Coil Voltage：120VAC
• Contact Form：SPDT (1 Form C)
• Contact Rating (Current)：10:00 AM
• Switching Voltage：380VAC, 125VDC - Max
• Load - Max Switching：3800VA, 1250W
• Coil Current：7.5 mA
• Coil Type：Non Latching
• Features：-
• Termination Style：Quick Connect - 0.187" (4.7mm)
• Seal Rating：Sealed - Flux Protection
• Coil Insulation：-
• Must Operate Voltage：96 VAC
• Must Release Voltage：36 VAC
• Operating Temperature：-40°C ~ 70°C
• Contact Material：Silver Alloy
• Approval Agency：CSA, TUV, UR, VDE
• Relay Type：General Purpose
• Grade：-
• Qualification：-
• Operate Time：15 ms
• Release Time：10 ms

Power Relays, Over 2 Amps datasheet and documents for G2R-1-T-AC120
