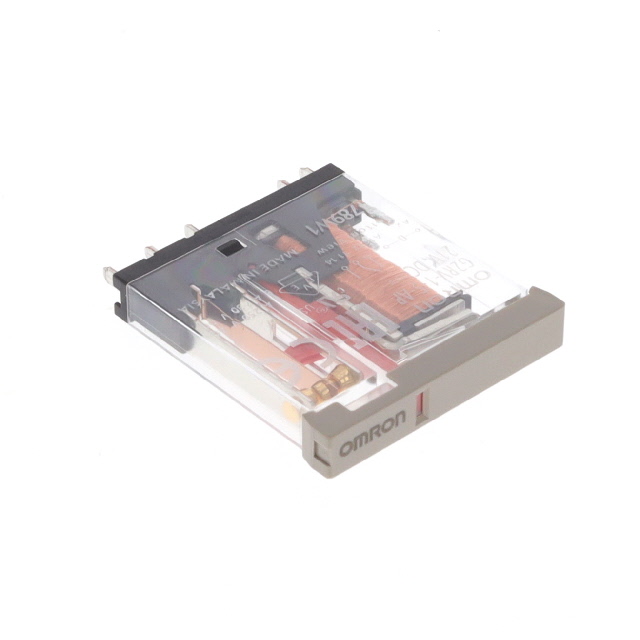

G2RV-1-S-AP DC21

Product Detailed Parameters

• Description：RELAY GEN PURPOSE SPDT 50MA 24V
• Series：G2RV
• Mfr：Omron Automation and Safety
• Package：Bulk
• Mounting Type：Socketable
• Coil Voltage：24VDC
• Contact Form：SPDT (1 Form C)
• Contact Rating (Current)：50 mA
• Switching Voltage：30VAC, 36VDC - Max
• Load - Max Switching：-
• Coil Current：13.3 mA
• Coil Type：Non Latching
• Features：-
• Termination Style：Plug In
• Seal Rating：-
• Coil Insulation：-
• Must Operate Voltage：19.2 VDC
• Must Release Voltage：2.4 VDC
• Operate Time：20 ms
• Release Time：40 ms
• Operating Temperature：-40°C ~ 55°C
• Contact Material：Silver Tin Indium (AgSnIn), Gold (Au)
• Approval Agency：CE, cULus, TUV
• Relay Type：General Purpose
• Grade：-
• Qualification：-
