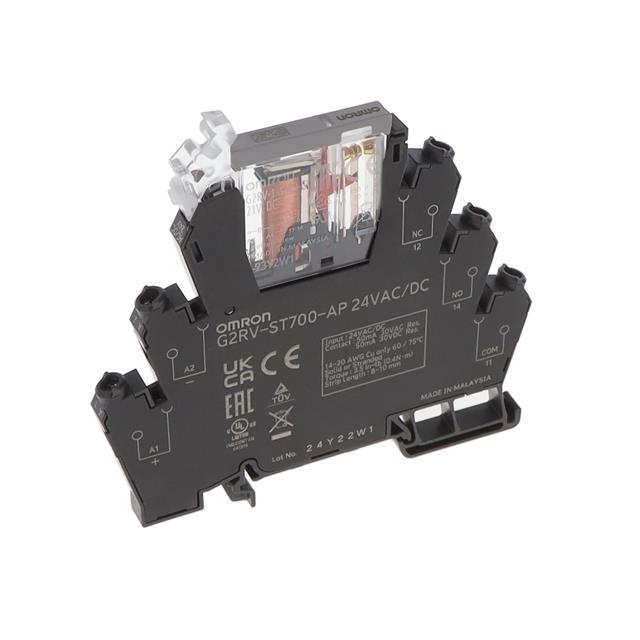

G2RV-ST700-AP AC/DC24

G2RV-ST700-AP AC/DC24 is listed in the Signal Relays, Up To 2 Amps range at ChipApex. The manufacturer field lists Omron Automation and Safety. Its product description is RELAY GEN PURPOSE SPDT 50MA 24V. Review the specifications below when checking this part for your BOM.

Signal Relays, Up To 2 Amps specifications for G2RV-ST700-AP AC/DC24

• Description：RELAY GEN PURPOSE SPDT 50MA 24V
• Series：G2RV-ST
• Mfr：Omron Automation and Safety
• Package：Box
• Mounting Type：DIN Rail
• Coil Voltage：24VAC/DC
• Contact Form：SPDT (1 Form C)
• Contact Rating (Current)：50 mA
• Switching Voltage：30VAC, 36VDC - Max
• Load - Max Switching：-
• Coil Current：14.9 mA
• Coil Type：Non Latching
• Features：Socket Included
• Termination Style：Screw Terminal
• Seal Rating：-
• Coil Insulation：-
• Must Operate Voltage：19.2 VAC/DC
• Must Release Voltage：2.4 VAC/DC
• Operate Time：20 ms
• Release Time：40 ms
• Operating Temperature：-40°C ~ 55°C
• Contact Material：Silver Alloy, Gold Alloy
• Approval Agency：CE, cULus, TUV
• Relay Type：General Purpose
• Grade：-
• Qualification：-

Signal Relays, Up To 2 Amps datasheet and documents for G2RV-ST700-AP AC/DC24
