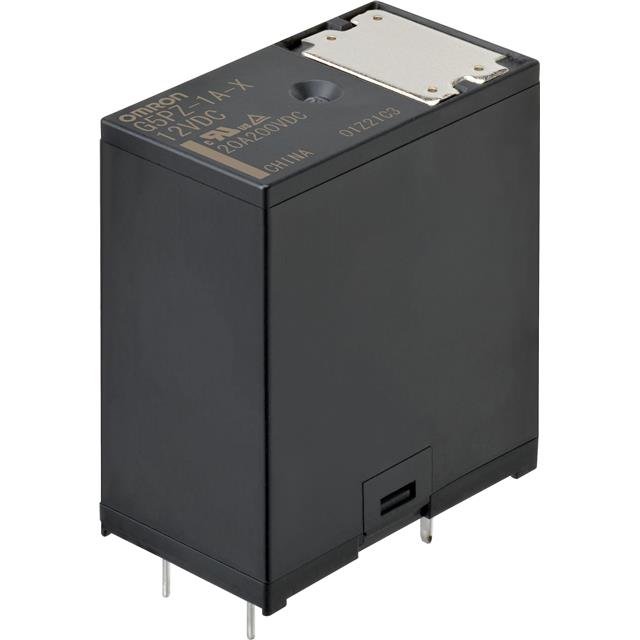

Power Relays, Over 2 Amps G5PZ-1A-X-DC12 product image

G5PZ-1A-X-DC12

$8.87

Description：RELAY GEN PURPOSE SPST 20A 12V
Series：G5PZ
Mfr：Omron Electronics Inc-EMC Div
Package：Tray

SKU:790bbf576565 Category: Power Relays, Over 2 Amps Brand: Omron Electronics Inc-EMC Div

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

G5PZ-1A-X-DC12 is listed in the Power Relays, Over 2 Amps range at ChipApex. The manufacturer field lists Omron Electronics Inc-EMC Div. Its product description is RELAY GEN PURPOSE SPST 20A 12V. Review the specifications below when checking this part for your BOM.

Power Relays, Over 2 Amps specifications for G5PZ-1A-X-DC12

Description：RELAY GEN PURPOSE SPST 20A 12V
Series：G5PZ
Mfr：Omron Electronics Inc-EMC Div
Package：Tray
Mounting Type：Through Hole
Coil Voltage：12VDC
Contact Form：SPST-NO (1 Form A)
Contact Rating (Current)：20 A
Switching Voltage：400VDC - Max
Load - Max Switching：5540VA, 4000W
Coil Current：44.1 mA
Coil Type：Non Latching
Features：-
Termination Style：PC Pin
Seal Rating：Sealed - Flux Protection
Coil Insulation：-
Must Operate Voltage：9 VDC
Must Release Voltage：0.6 VDC
Operating Temperature：-40°C ~ 85°C
Contact Material：Silver Alloy, Cadmium Free
Approval Agency：CQC, cURus, TUV
Relay Type：General Purpose
Grade：-
Qualification：-
Operate Time：15 ms
Release Time：5 ms

Power Relays, Over 2 Amps datasheet and documents for G5PZ-1A-X-DC12

G5PZ-1A-X-DC12
