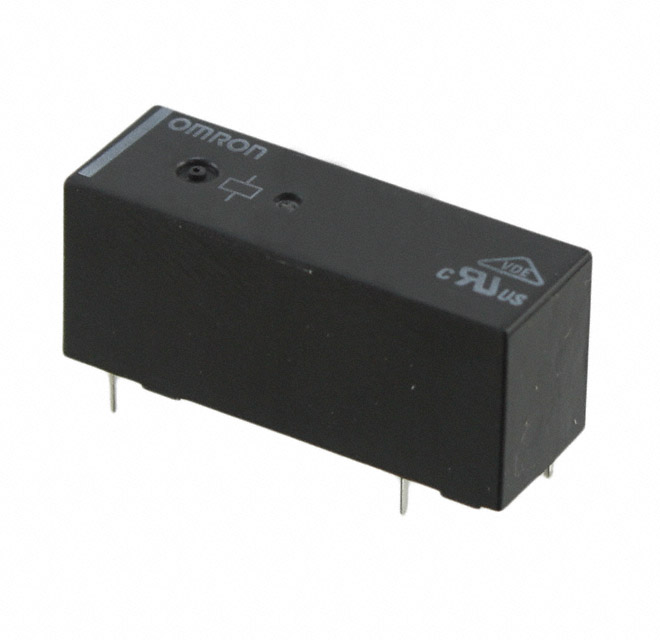

G6RL-1A-ASI DC5

G6RL-1A-ASI DC5 is listed in the Power Relays, Over 2 Amps range at ChipApex. The manufacturer field lists Omron Electronics Inc-EMC Div. Its product description is RELAY GEN PURPOSE SPST 10A 5V. Review the specifications below when checking this part for your BOM.

Power Relays, Over 2 Amps specifications for G6RL-1A-ASI DC5

• Description：RELAY GEN PURPOSE SPST 10A 5V
• Series：G6RL
• Mfr：Omron Electronics Inc-EMC Div
• Package：Bulk
• Mounting Type：Through Hole
• Coil Voltage：5VDC
• Contact Form：SPST-NO (1 Form A)
• Contact Rating (Current)：10:00 AM
• Switching Voltage：250VAC - Nom
• Load - Max Switching：2500VA
• Coil Current：44 mA
• Coil Type：Non Latching
• Features：-
• Termination Style：PC Pin
• Seal Rating：Sealed - Flux Protection
• Coil Insulation：-
• Must Operate Voltage：3.5 VDC
• Must Release Voltage：0.5 VDC
• Operating Temperature：-40°C ~ 85°C
• Contact Material：Silver Tin Indium (AgSnIn)
• Approval Agency：cURus, VDE
• Relay Type：General Purpose
• Grade：-
• Qualification：-
• Operate Time：10 ms
• Release Time：5 ms

Power Relays, Over 2 Amps datasheet and documents for G6RL-1A-ASI DC5
