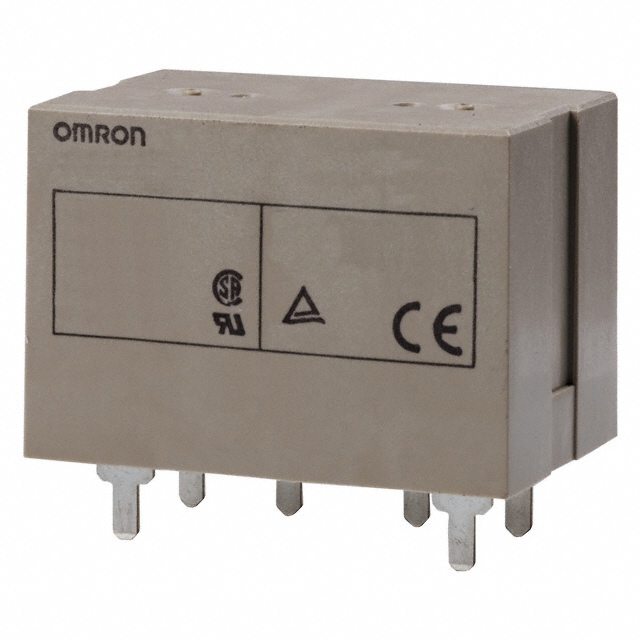

G7L-2A-P-CB DC6

G7L-2A-P-CB DC6 is listed in the Power Relays, Over 2 Amps range at ChipApex. The manufacturer field lists Omron Electronics Inc-EMC Div. Its product description is RELAY GEN PURPOSE DPST 20A 6V. Review the specifications below when checking this part for your BOM.

Power Relays, Over 2 Amps specifications for G7L-2A-P-CB DC6

• Description：RELAY GEN PURPOSE DPST 20A 6V
• Series：G7L
• Mfr：Omron Electronics Inc-EMC Div
• Package：Bulk
• Mounting Type：Through Hole
• Coil Voltage：6VDC
• Contact Form：DPST-NO (2 Form A)
• Contact Rating (Current)：20 A
• Switching Voltage：250VAC - Max
• Load - Max Switching：5000VA
• Coil Current：317 mA
• Coil Type：Non Latching
• Features：-
• Termination Style：PC Pin
• Seal Rating：-
• Coil Insulation：Class B
• Must Operate Voltage：4.5 VDC
• Must Release Voltage：0.9 VDC
• Operating Temperature：-25°C ~ 60°C
• Contact Material：Silver Alloy
• Approval Agency：CSA, TUV, UR
• Relay Type：General Purpose
• Grade：-
• Qualification：-
• Operate Time：30 ms
• Release Time：30 ms

Power Relays, Over 2 Amps datasheet and documents for G7L-2A-P-CB DC6
