GBC03SBSN-M89

Headers, Male Pins Overview

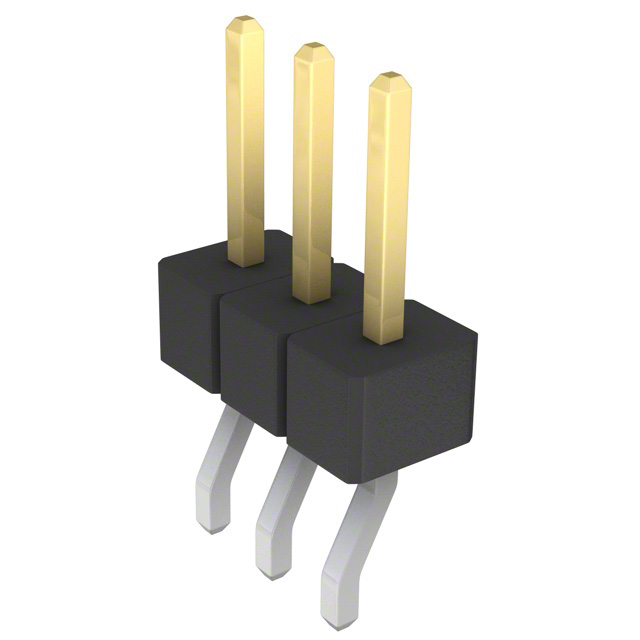

The GBC03SBSN-M89 is a male header connector manufactured by Sullins Connector Solutions, designed for surface mount assembly with a right-angle orientation. It features a single row of three positions with a 0.100-inch (2.54mm) pitch. The contacts are made of phosphor bronze with gold plating on the mating interface and tin on the post, ensuring reliable electrical performance. Rated for 3A current, it utilizes PA9T nylon insulation rated UL94 V-0 for flame resistance. The operating temperature range spans from -65°C to 150°C, supporting high-temperature applications.

Headers, Male Pins Feature Summary

• Surface mount right-angle design for compact PCB integration
• Breakaway header style allows for custom length segmentation
• High-temperature resistant PA9T insulator material
• Gold-plated contact surfaces for corrosion resistance

Headers, Male Pins Applications

• Board-to-board interconnections
• Cable-to-board connections
• High-temperature electronic assemblies
• Compact consumer electronics modules

Headers, Male Pins Procurement Notes

Verify component authenticity through authorized distributors or direct manufacturer channels. Confirm RoHS compliance status and specific lot codes against current regulatory requirements. Check datasheet revisions for any updates to mechanical dimensions or material specifications prior to final procurement decisions.

Headers, Male Pins Selection Notes

Select this component when a low-profile, right-angle surface mount header is required for three-position connections. Ensure PCB layout accommodates the 0.140-inch insulation height and right-angle footprint. Consider the breakaway feature if standard pin counts do not match the design requirements, allowing for manual separation during assembly.

Headers, Male Pins Part Context

This part belongs to the GBC series of male breakaway headers from Sullins Connector Solutions. The series offers various position counts and termination styles, including straight and right-angle options. The GBC03SBSN-M89 specifically addresses needs for small-form-factor, high-reliability interconnects in space-constrained environments requiring robust thermal performance.

Headers, Male Pins Replacement Considerations

Direct substitutes within the same family include GBC05SBSN-M89 and GBC07SBSN-M89 for different pin counts. Verify mechanical compatibility and electrical ratings before substituting with generic equivalents. Cross-reference datasheets for identical pitch, height, and mounting configuration to ensure seamless integration.
