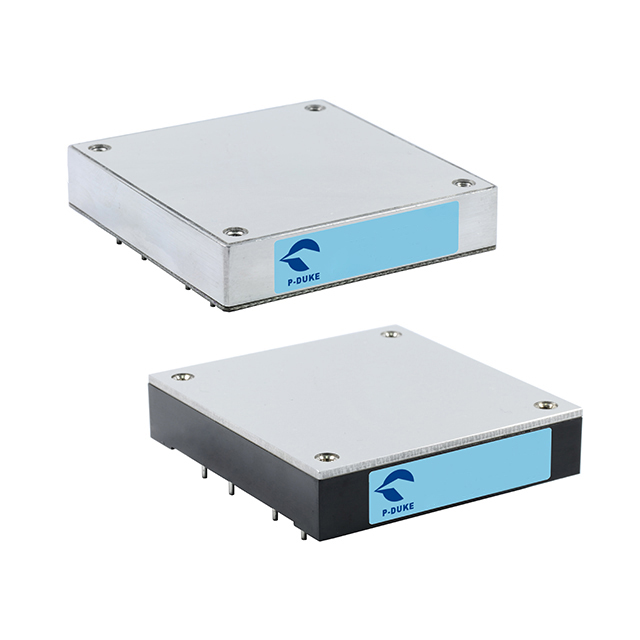

HAE150-110S48W

HAE150-110S48W is listed in the DC DC Converters range at ChipApex. The manufacturer field lists P-DUKE Technology. Its product description is DC DC CONVERTER 48V 182W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for HAE150-110S48W

• Description：DC DC CONVERTER 48V 182W
• Series：HAE150W (182W)
• Mfr：P-DUKE Technology
• Package：Box
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：43V
• Voltage - Input (Max)：160V
• Voltage - Output 1：48V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：3.8A
• Power (Watts)：182 W
• Voltage - Isolation：3 kV
• Applications：ITE (Commercial)
• Features：Adjustable Output, Baseplate, Remote On/Off, Remote Sense
• Operating Temperature：-40°C ~ 115°C (With Derating)
• Efficiency：90%
• Mounting Type：Through Hole
• Package / Case：Half Brick
• Size / Dimension：2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm)
• Supplier Device Package：Half Brick
• Control Features：Enable, Active Low
• Approval Agency：CB, CE, cURus
• Standard Number：60950-1
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for HAE150-110S48W
