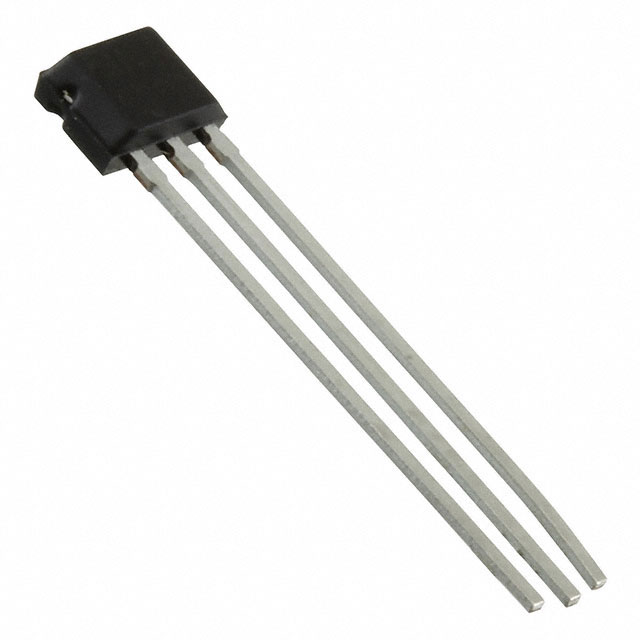

HAL506 UA-2

HAL506 UA-2 is listed in the Switches (Solid State) range at ChipApex. The manufacturer field lists TDK-Micronas GmbH. Its product description is MAGNETIC SWITCH TO92UA-2. Review the specifications below when checking this part for your BOM.

Switches (Solid State) specifications for HAL506 UA-2

• Description：MAGNETIC SWITCH TO92UA-2
• Series：HAL® 5xy
• Mfr：TDK-Micronas GmbH
• Package：Tape & Box (TB)
• Function：-
• Technology：Hall Effect
• Polarization：-
• Sensing Range：-
• Test Condition：-
• Voltage - Supply：3.8V ~ 24V
• Current - Supply (Max)：5.2mA
• Current - Output (Max)：20mA
• Output Type：Open Drain
• Features：Temperature Compensated
• Operating Temperature：-40°C ~ 140°C (TJ)
• Mounting Type：Through Hole
• Supplier Device Package：TO-92UA-2
• Package / Case：TO-226-3, TO-92-3 Short Body
• Grade：-
• Qualification：-

Switches (Solid State) datasheet and documents for HAL506 UA-2
