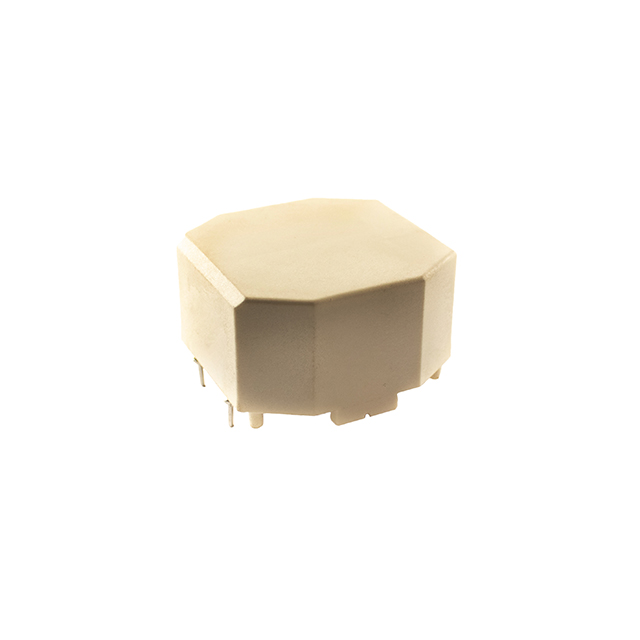

HCMC4343-272N

HCMC4343-272N is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists Allied Components International. Its product description is CMC 2.7MH 8A 2LN TH. Review the specifications below when checking this part for your BOM.

Common Mode Chokes specifications for HCMC4343-272N

• Description：CMC 2.7MH 8A 2LN TH
• Series：HCMC4343-272N
• Mfr：Allied Components International
• Package：Bag
• Filter Type：Power Line
• Number of Lines：2
• Current Rating (Max)：8A
• DC Resistance (DCR) (Max)：22mOhm
• Voltage Rating - DC：-
• Voltage Rating - AC：-
• Operating Temperature：-40°C ~ 85°C
• Ratings：-
• Approval Agency：-
• Features：-
• Mounting Type：Through Hole
• Size / Dimension：1.693" L x 1.693" W (43.00mm x 43.00mm)
• Height (Max)：1.024" (26.00mm)
• Package / Case：Horizontal, 4 PC Pin
• Inductance @ Frequency：2.7 mH @ 10 kHz
• Impedance @ Frequency：-
• Qualification：-
• Grade：-

Common Mode Chokes datasheet and documents for HCMC4343-272N
