HCPL2530SD

$0.61

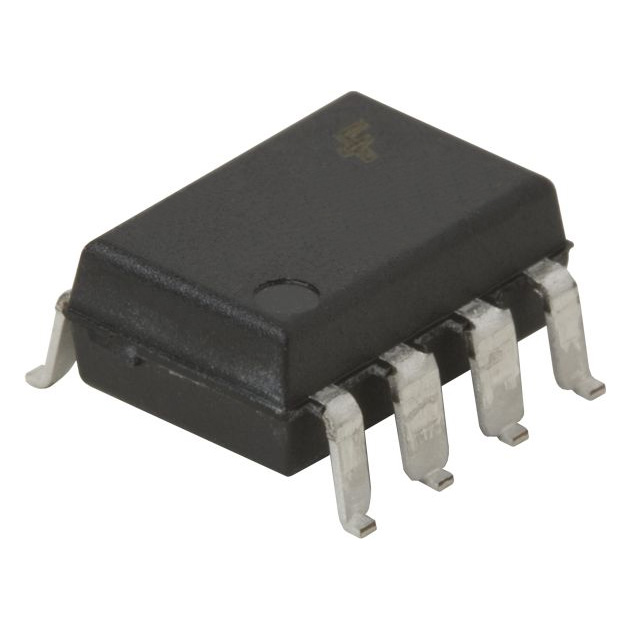

Description：OPTOISOLTR 2.5KV 2CH TRANS 8-SMD
Series：-
Mfr：Fairchild Semiconductor
Package：Bulk

SKU:89cbc85317c0 Category: Transistor, Photovoltaic Output Optoisolators Brand: Fairchild Semiconductor

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

HCPL2530SD is listed in the Transistor, Photovoltaic Output Optoisolators range at ChipApex. The manufacturer field lists Fairchild Semiconductor. Its product description is OPTOISOLTR 2.5KV 2CH TRANS 8-SMD. Review the specifications below when checking this part for your BOM.

Transistor, Photovoltaic Output Optoisolators specifications for HCPL2530SD

Description：OPTOISOLTR 2.5KV 2CH TRANS 8-SMD
Series：-
Mfr：Fairchild Semiconductor
Package：Bulk
Number of Channels：2
Voltage - Isolation：2500Vrms
Current Transfer Ratio (Min)：7% @ 16mA
Current Transfer Ratio (Max)：50% @ 16mA
Turn On / Turn Off Time (Typ)：450ns, 500ns
Rise / Fall Time (Typ)：-
Input Type：DC
Output Type：Transistor
Voltage - Output (Max)：20V
Current - Output / Channel：8mA
Voltage - Forward (Vf) (Typ)：1.45V
Current - DC Forward (If) (Max)：25 mA
Vce Saturation (Max)：-
Operating Temperature：-55°C ~ 100°C
Mounting Type：Surface Mount
Package / Case：8-SMD, Gull Wing
Supplier Device Package：8-SMD
Grade：-
Qualification：-

Transistor, Photovoltaic Output Optoisolators datasheet and documents for HCPL2530SD

HCPL2530SD

Transistor, Photovoltaic Output Optoisolators Overview

The HCPL2530SD is a dual-channel high-speed transistor optocoupler manufactured by Fairchild Semiconductor. It features a DIP-8 package with through-hole mounting and operates within a temperature range of -55°C to 100°C. The device supports a data rate of 1 Mbit/s and provides an isolation voltage of 2500 Vrms. Key electrical parameters include a maximum forward current of 25 mA, a maximum forward voltage of 1.7 V, and a minimum current transfer ratio of 5%. The component is CMOS compatible and complies with RoHS standards.

Transistor, Photovoltaic Output Optoisolators Feature Summary

Dual-channel configuration for simultaneous signal isolation
High-speed operation supporting 1 Mbit/s data rates
Superior common-mode rejection capability
CMOS logic compatibility

Transistor, Photovoltaic Output Optoisolators Applications

Logic-level isolation applications
Industrial control systems
Communication interfaces requiring galvanic isolation

Transistor, Photovoltaic Output Optoisolators Procurement Notes

Verify the manufacturer designation on the datasheet header, as Fairchild Semiconductor assets were acquired by onsemi. Confirm that the specific part number HCPL2530SD corresponds to the intended DIP-8 through-hole package variant rather than surface-mount alternatives. Ensure compliance requirements match the project specifications.

Transistor, Photovoltaic Output Optoisolators Selection Notes

Select this component when dual-channel isolation with high-speed performance is required. The transistor output type suits logic interfacing. Verify that the 2500 Vrms isolation rating meets safety standards for the target application environment. Consider thermal dissipation limits within the specified operating temperature range.

Transistor, Photovoltaic Output Optoisolators Part Context

This component belongs to the HCPL2530 series of high-speed transistor optocouplers. It is functionally related to single-channel variants like the HCPL2503 but offers two isolated channels in one package. The series is designed for applications demanding fast switching speeds and reliable signal transmission across isolation barriers.
