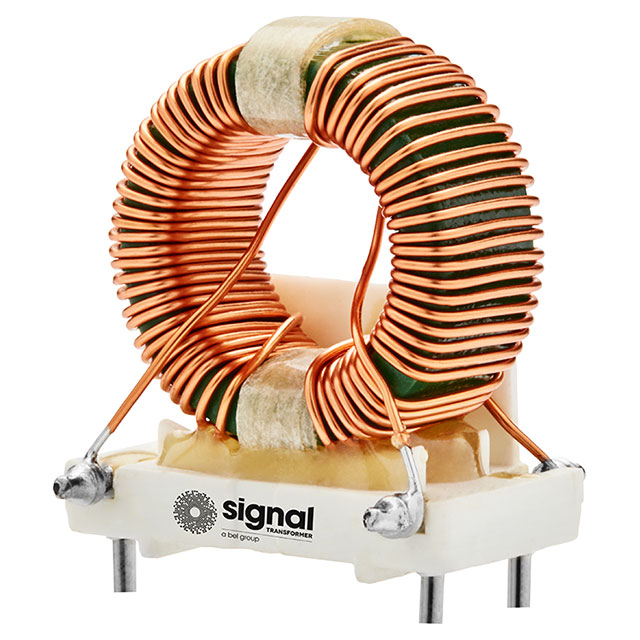

HCTC-2.5-2.4

$2.47

Description：CMC 2.5MH 2.4A 2LN TH
Series：HCTC
Mfr：Signal Transformer
Package：Tray

SKU:5f18beb7fb6b Category: Common Mode Chokes Brand: Signal Transformer

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

HCTC-2.5-2.4 is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists Signal Transformer. Its product description is CMC 2.5MH 2.4A 2LN TH. Review the specifications below when checking this part for your BOM.

Common Mode Chokes specifications for HCTC-2.5-2.4

Description：CMC 2.5MH 2.4A 2LN TH
Series：HCTC
Mfr：Signal Transformer
Package：Tray
Filter Type：Power Line
Number of Lines：2
Current Rating (Max)：2.4A
DC Resistance (DCR) (Max)：90mOhm
Voltage Rating - DC：-
Voltage Rating - AC：-
Operating Temperature：-55°C ~ 105°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Through Hole
Size / Dimension：0.760" L x 0.455" W (19.30mm x 11.56mm)
Height (Max)：0.900" (22.86mm)
Package / Case：Vertical, 4 PC Pin
Inductance @ Frequency：2.5 mH @ 1 kHz
Impedance @ Frequency：-

Common Mode Chokes datasheet and documents for HCTC-2.5-2.4

HCTC-2.5-2.4

Common Mode Chokes Overview

The HCTC-2.5-2.4 is a high current toroidal common mode choke from the HCTC series by Signal Transformer. It features a through-hole mounting style and is designed for two-line applications. The component provides an inductance of 2.5 mH at 1 kHz, with a maximum DC current rating of 2.4 A. Its maximum DC resistance is 0.09 Ohms, and it supports a withstand voltage of 1.5 kVrms. The unit weighs approximately 49.895 g.

Common Mode Chokes Feature Summary

High current toroidal core design
Two-line common mode filtering capability
Through-hole mounting configuration

Common Mode Chokes Applications

Power supply input filtering
EMI suppression in electronic circuits
Common mode noise reduction in two-line systems

Common Mode Chokes Procurement Notes

Verify the manufacturer part number HCTC-2.5-2.4 against official Signal Transformer documentation to ensure authenticity. Confirm that the required electrical parameters, including 2.5 mH inductance and 2.4 A current rating, match your specific circuit requirements. Check for RoHS compliance status as indicated in the official datasheet before procurement.

Common Mode Chokes Selection Notes

Select this component when a high current toroidal choke is needed for two-line applications. Ensure the 2.4 A current rating and 2.5 mH inductance meet the design specifications. Verify that through-hole mounting is compatible with the PCB layout. Consider the 1.5 kVrms withstand voltage for insulation requirements.

Common Mode Chokes Part Context

This component belongs to the HCTC series of high current toroidal chokes manufactured by Signal Transformer. These components are categorized under common mode chokes and filters within the inductors, chokes & coils subcategory. The series is designed for robust performance in power electronics applications requiring significant current handling capabilities.

Common Mode Chokes Replacement Considerations

Consult official Signal Transformer documentation for verified substitute part numbers within the HCTC series or equivalent product lines. Ensure any replacement matches the 2.5 mH inductance, 2.4 A current rating, and through-hole package type.
