HF2826-802Y2R0-T01

Description：CMC 2A 2LN TH
Series：HF
Mfr：TDK Corporation
Package：Bulk

SKU:3a5d48f9cbd8 Category: Common Mode Chokes Brand: TDK Corporation

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

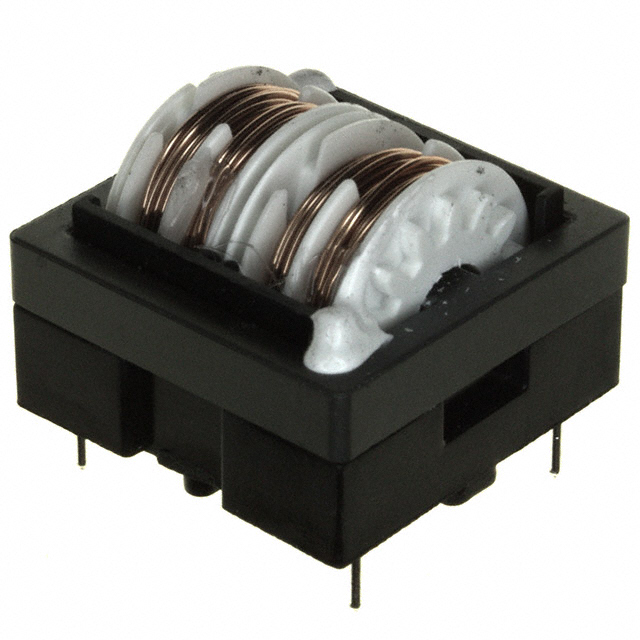

HF2826-802Y2R0-T01 is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists TDK Corporation. Its product description is CMC 2A 2LN TH. Review the specifications below when checking this part for your BOM.

Common Mode Chokes specifications for HF2826-802Y2R0-T01

Description：CMC 2A 2LN TH
Series：HF
Mfr：TDK Corporation
Package：Bulk
Filter Type：Power Line
Number of Lines：2
Current Rating (Max)：2A
DC Resistance (DCR) (Max)：180mOhm
Voltage Rating - DC：-
Voltage Rating - AC：-
Operating Temperature：-20°C ~ 120°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Through Hole
Size / Dimension：1.201" L x 1.201" W (30.50mm x 30.50mm)
Height (Max)：1.024" (26.00mm)
Package / Case：Vertical, 4 PC Pin
Inductance @ Frequency：-
Impedance @ Frequency：-
Qualification：-
Grade：-

Common Mode Chokes datasheet and documents for HF2826-802Y2R0-T01

HF2826-802Y2R0-T01

Common Mode Chokes Overview

The HF2826-802Y2R0-T01 is a single-phase EMI filter manufactured by TDK Corporation. It features a closed magnetic circuit core type designed for power line applications. The component has a rated current of 2 A and operates at frequencies of 50/60 Hz. Physical dimensions are L30.5 x B30.5 x H26.0 mm. It supports through-hole mounting with a maximum operating temperature of 120 °C and a minimum of -20 °C. High potential voltage is 2000 V, and minimum insulation resistance is 100 MΩ.

Common Mode Chokes Feature Summary

Closed magnetic circuit core design for effective noise suppression
Single-phase configuration suitable for power line filtering
Through-hole mounting capability for robust mechanical connection

Common Mode Chokes Applications

Power line EMI filtering
Single-phase equipment noise reduction

Common Mode Chokes Procurement Notes

Verify the obsolete status of this specific part number before procurement planning. Confirm availability of authorized substitutes or alternative series components from TDK Corporation. Ensure that replacement parts meet identical electrical specifications and physical footprint requirements to maintain system compatibility. Check official distributor channels for current stock levels of compatible alternatives.

Common Mode Chokes Selection Notes

Select this component for single-phase power line applications requiring common mode noise suppression. Verify that the 2 A rated current and 25 mH inductance align with circuit requirements. Ensure through-hole mounting fits the PCB layout. Consider thermal limits up to 120 °C for operational environments. Validate insulation resistance and high potential voltage ratings against safety standards.

Common Mode Chokes Part Context

This component belongs to the HF Series of Common Mode Choke Coils by TDK Corporation. The series includes vertical types such as HF2316, HF2318, HF2922, HF2024, HF2422, HF2430, HF2826, HF2836, and HF3545. These filters utilize closed magnetic circuit cores for large inductance applications. The HF2826 variant specifically targets power line filtering needs.
