HHBC12-1R0A0080V

Common Mode Chokes Overview

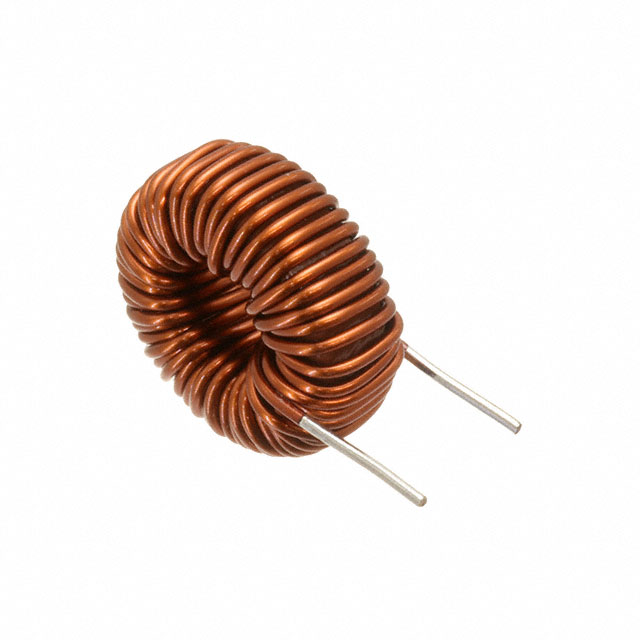

The KEMET HHBC12-1R0A0080V is a through-hole toroidal inductor from the HHBC series, designed for normal mode applications. It features an iron-silicon (Fe-Si) dust core and provides an inductance of 80 µH with a tolerance of ±20%. The component supports a maximum RMS current of 5 A and exhibits a maximum DC resistance of 35.6 mΩ. It operates within a temperature range of -40 °C to +125 °C and is tested at 100 kHz. The device utilizes radial leads for PCB mounting.

Common Mode Chokes Feature Summary

• Utilizes iron-silicon dust core material for stable magnetic performance
• Designed as a normal mode choke for power filtering applications
• Supports high current handling up to 5 A RMS

Common Mode Chokes Applications

• Power supply input filtering
• DC-DC converter stages
• General purpose noise suppression in electronic circuits

Common Mode Chokes Procurement Notes

Verify the specific part number HHBC12-1R0A0080V against official KEMET documentation to confirm electrical parameters and mechanical dimensions. Ensure compatibility with required current ratings and thermal operating conditions before integration into the design.

Common Mode Chokes Selection Notes

Select this component when a through-hole toroidal inductor with 80 µH inductance and 5 A current capacity is required. Consider the physical dimensions and lead spacing for PCB layout constraints. Verify that the iron-silicon core characteristics align with the specific frequency response needs of the application.

Common Mode Chokes Part Context

This component belongs to the KEMET HHBC series of fixed inductors. The series offers various inductance values and current ratings using toroidal cores. These components are distinct from common mode chokes, serving specifically as differential or normal mode chokes in power electronics designs.

Common Mode Chokes Replacement Considerations

Consult official KEMET substitution guides for verified alternatives. Cross-referencing requires matching inductance, current rating, and physical footprint specifications.
