HHBC24N-2R3A0104V

Common Mode Chokes Overview

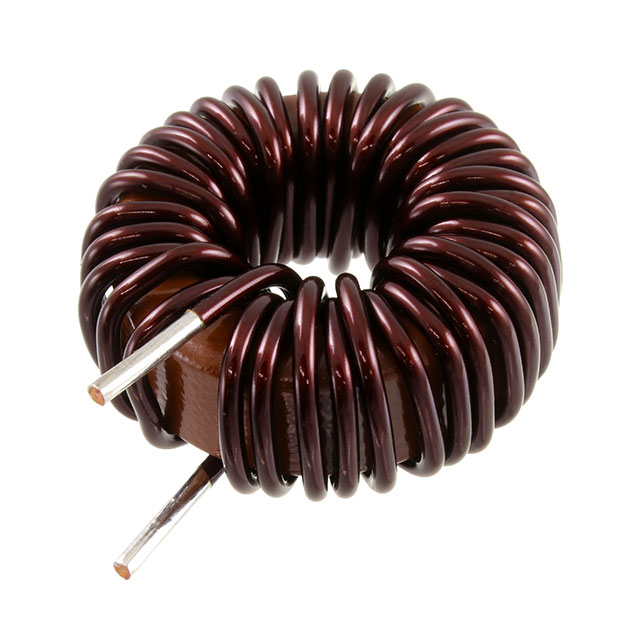

The KEMET HHBC24N-2R3A0104V is a toroidal power inductor from the HHBC series, designed for through-hole mounting. It features an inductance of 104 µH with a tolerance of ±20%. The component supports a maximum RMS current of 20 A and has a maximum DC resistance of 10.4 mΩ. It operates within a temperature range of -40°C to +120°C.

Common Mode Chokes Feature Summary

• Toroidal core construction for efficient magnetic flux containment
• High current handling capability suitable for power supply applications
• Through-hole termination for robust PCB mechanical attachment

Common Mode Chokes Applications

• Power supply filtering
• DC-DC converter circuits
• EMI suppression in power lines

Common Mode Chokes Procurement Notes

Verify the specific part number against official KEMET documentation to confirm pin configuration and physical dimensions. Ensure that the selected component meets the required thermal management standards for the intended operating environment. Cross-reference technical specifications with system design requirements before finalizing procurement decisions.

Common Mode Chokes Selection Notes

Select this component based on its 104 µH inductance and 20 A current rating. Consider the low DC resistance for minimizing power loss. Evaluate the through-hole package compatibility with existing PCB layouts. Confirm that the operating temperature range aligns with the application's environmental conditions.

Common Mode Chokes Part Context

This inductor belongs to the HHBC series, which focuses on high-current performance. The toroidal design helps reduce electromagnetic interference compared to other core shapes. It is engineered for reliability in demanding power electronics environments.

Common Mode Chokes Replacement Considerations

Consult official KEMET substitution guides for verified alternatives. Ensure any replacement matches the 104 µH inductance, 20 A current rating, and 10.4 mΩ resistance. Verify physical footprint compatibility for through-hole installation.
