HHBC24W-2R1B0065V

$31.59

Description：CMC 65UH 30A 2LN TH
Series：HHBC
Mfr：KEMET
Package：Bulk

SKU:f530799871ac Category: Common Mode Chokes Brand: KEMET

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

HHBC24W-2R1B0065V is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists KEMET. Its product description is CMC 65UH 30A 2LN TH. Review the specifications below when checking this part for your BOM.

Common Mode Chokes specifications for HHBC24W-2R1B0065V

Description：CMC 65UH 30A 2LN TH
Series：HHBC
Mfr：KEMET
Package：Bulk
Filter Type：-
Number of Lines：2
Current Rating (Max)：30A
DC Resistance (DCR) (Max)：6.2mOhm
Voltage Rating - DC：-
Voltage Rating - AC：-
Operating Temperature：-40°C ~ 125°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Through Hole
Size / Dimension：-
Height (Max)：-
Package / Case：Vertical, No Base, 2 PC Pin
Inductance @ Frequency：65 µH @ 100 kHz
Impedance @ Frequency：-

Common Mode Chokes datasheet and documents for HHBC24W-2R1B0065V

HHBC24W-2R1B0065V

Common Mode Chokes Overview

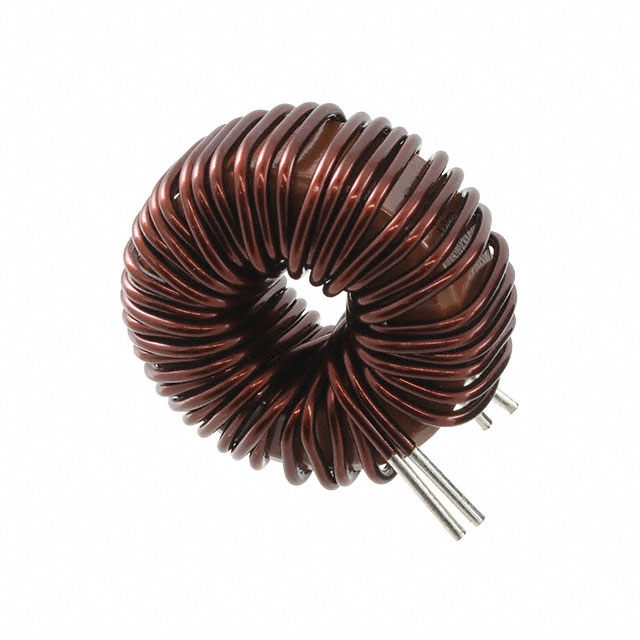

The KEMET HHBC24W-2R1B0065V is a toroidal power inductor from the HHBC series, designed for through-hole mounting. It features an inductance of 65 µH with a tolerance of ±20%. The component supports an operating current of 30 A and exhibits a DC resistance of 6200 µohm (6.2 mΩ). It operates within a temperature range of -40°C to 125°C. The package is vertical with no base and utilizes two PC pins for connection.

Common Mode Chokes Feature Summary

Toroidal core construction for efficient magnetic flux containment
High current handling capability suitable for power applications
Through-hole mounting configuration for robust PCB attachment

Common Mode Chokes Applications

Power supply filtering
DC-DC converter circuits
EMI suppression in power lines

Common Mode Chokes Procurement Notes

Verify the specific voltage rating and saturation current limits against your circuit requirements before procurement. Confirm that the through-hole footprint matches your PCB design constraints. Ensure the operating temperature range aligns with your environmental conditions. Check for any specific automotive or industrial certifications if required by your application standards.

Common Mode Chokes Selection Notes

Select this component when high current capacity and low DC resistance are critical for power efficiency. The toroidal design offers compactness and reduced electromagnetic interference compared to other core shapes. Consider the thermal management capabilities of your system given the 30 A operating current. Verify compatibility with automated assembly processes if using through-hole technology.

Common Mode Chokes Part Context

This part belongs to KEMET's HHBC series of fixed power inductors. These components are engineered for demanding power electronics applications requiring reliable performance under high current loads. The series is characterized by its toroidal geometry and through-hole construction, providing durability and consistent electrical characteristics across various operating conditions.
