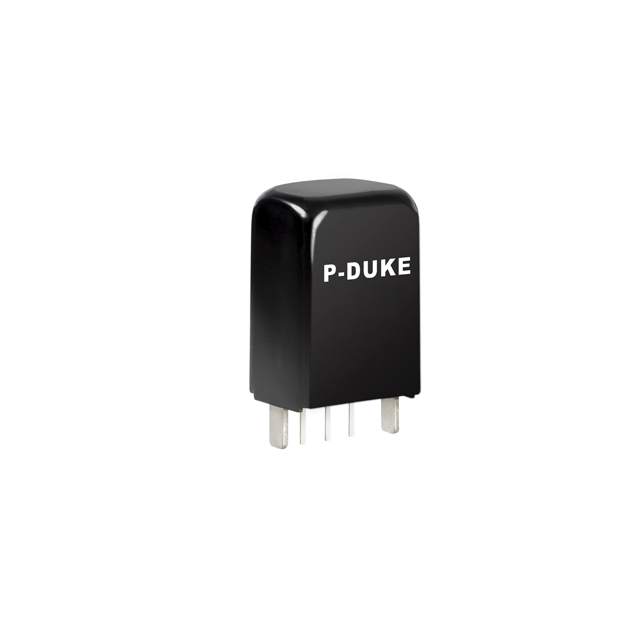

HSR01-48S3P3

HSR01-48S3P3 is listed in the DC DC Converters range at ChipApex. The manufacturer field lists P-DUKE Technology. Its product description is DC DC CONVERTER 3.3V 3.3W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for HSR01-48S3P3

• Description：DC DC CONVERTER 3.3V 3.3W
• Series：HSR01
• Mfr：P-DUKE Technology
• Package：Tube
• Type：Non-Isolated PoL Module
• Number of Outputs：1
• Voltage - Input (Min)：9V
• Voltage - Input (Max)：72V
• Voltage - Output 1：3.3V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：1A
• Power (Watts)：3.3 W
• Voltage - Isolation：500 V
• Applications：ITE (Commercial)
• Features：Remote On/Off
• Operating Temperature：-40°C ~ 105°C (With Derating)
• Efficiency：82.50%
• Mounting Type：Through Hole
• Package / Case：3-SIP Module
• Size / Dimension：0.48" L x 0.34" W x 0.69" H (12.1mm x 8.6mm x 17.5mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：CE
• Standard Number：-
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for HSR01-48S3P3
