HTSW-108-07-S-S-004

Headers, Male Pins Overview

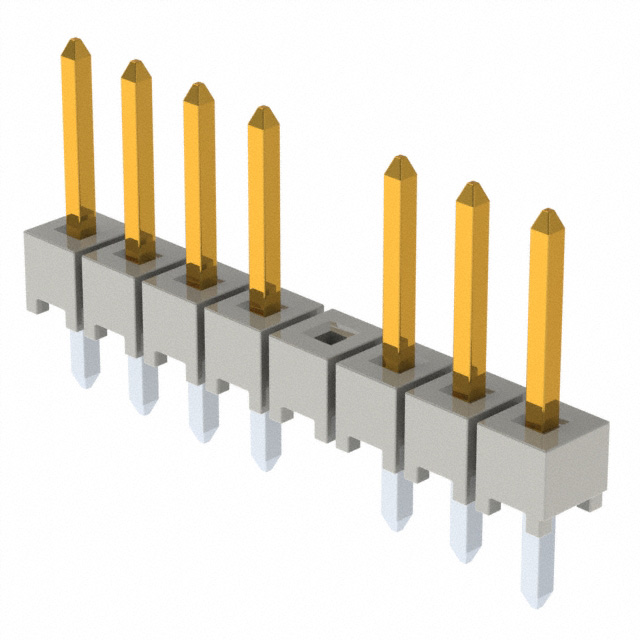

The HTSW-108-07-S-S-004 is a vertical header connector from the Samtec HTSW series, designed for through-hole PCB mounting. It features an 8-position single-row configuration with a 0.100-inch (2.54mm) pitch. The connector utilizes male pins with gold plating on the mating interface and tin plating on the tail. Constructed with liquid crystal polymer insulation rated UL94 V-0, it supports a temperature range of -55°C to 125°C. The design includes a push-pull locking mechanism and natural-colored housing.

Headers, Male Pins Feature Summary

• High-temperature capability suitable for demanding thermal environments
• Gold-plated contacts ensure reliable signal transmission
• Push-pull locking style provides secure board-to-board connection

Headers, Male Pins Applications

• High-temperature board-to-board interconnects
• General-purpose electronic assembly requiring robust headers
• Through-hole PCB mounting applications

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix against the manufacturer's current datasheet to confirm pin count, row configuration, and plating specifications. Ensure compatibility with mating connectors regarding stacking height and contact length. Confirm RoHS compliance status and moisture sensitivity classification prior to procurement integration.

Headers, Male Pins Selection Notes

Select this component when high-temperature performance up to 125°C is required for through-hole header applications. The single-row, 8-position layout suits compact designs needing reliable vertical interconnection. Consider the push-pull locking feature if mechanical retention during operation is critical for the assembly.

Headers, Male Pins Part Context

This part belongs to the HTSW series of high-temperature PCB headers manufactured by Samtec Inc. The series offers various position counts and row configurations, all sharing common characteristics such as liquid crystal polymer insulation and high thermal stability for industrial and commercial electronics.

Headers, Male Pins Replacement Considerations

Consult official Samtec documentation for direct substitutes within the HTSW or TSW families that match the 8-position, single-row, through-hole specification. Verify dimensional compatibility and electrical ratings before substituting.
