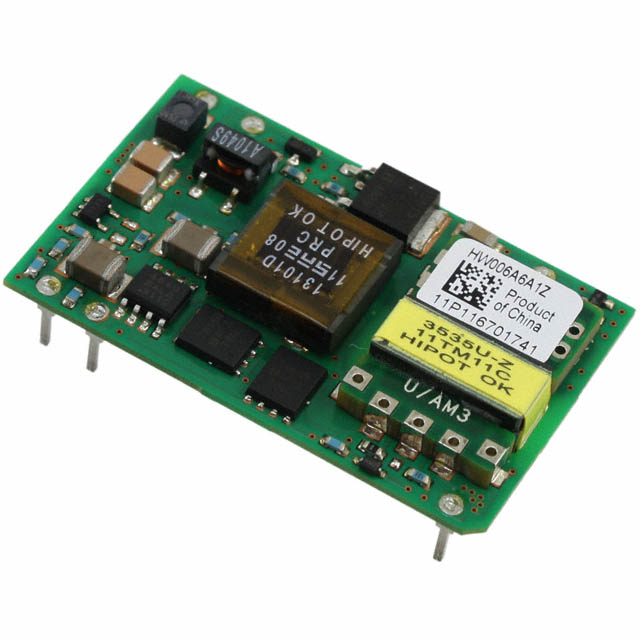

HW006A6A1-S

HW006A6A1-S is listed in the DC DC Converters range at ChipApex. The manufacturer field lists OmniOn Power™. Its product description is DC DC CONVERTER 5V 33W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for HW006A6A1-S

• Description：DC DC CONVERTER 5V 33W
• Series：HW006
• Mfr：OmniOn Power™
• Package：Bulk
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：36V
• Voltage - Input (Max)：75V
• Voltage - Output 1：5V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：6.6A
• Power (Watts)：33 W
• Voltage - Isolation：2.25 kV
• Applications：ITE (Commercial)
• Features：Remote On/Off, OCP, OTP, OVP, UVLO
• Operating Temperature：-40°C ~ 85°C
• Efficiency：89%
• Mounting Type：Surface Mount
• Package / Case：18-SMD Module, 6 Leads
• Size / Dimension：1.86" L x 1.16" W x 0.34" H (47.2mm x 29.5mm x 8.6mm)
• Supplier Device Package：-
• Control Features：Enable, Active Low
• Approval Agency：-
• Standard Number：-

DC DC Converters datasheet and documents for HW006A6A1-S

Explore related parts through Power Supplies - Board Mount, all product categories, ChipApex homepage.
