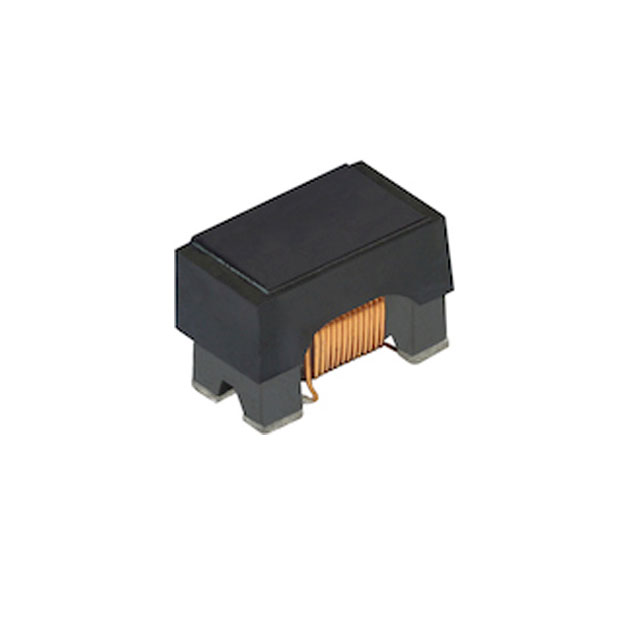

ICM0603ER900V is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists Vishay Dale. Its product description is CMC 500MA 2LN 90 OHM SMD. Review the specifications below when checking this part for your BOM.
Common Mode Chokes specifications for ICM0603ER900V
- Description：CMC 500MA 2LN 90 OHM SMD
- Series：ICM0603
- Mfr：Vishay Dale
- Package：Tape & Reel (TR),Cut Tape (CT)
- Filter Type：Power Line
- Number of Lines：2
- Current Rating (Max)：500mA
- DC Resistance (DCR) (Max)：145mOhm
- Voltage Rating - DC：50V
- Voltage Rating - AC：-
- Operating Temperature：-40°C ~ 125°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Surface Mount
- Size / Dimension：0.063" L x 0.033" W (1.60mm x 0.85mm)
- Height (Max)：0.047" (1.20mm)
- Package / Case：Horizontal, 4 PC Pad
- Inductance @ Frequency：-
- Impedance @ Frequency：90 Ohms @ 500 kHz
- Qualification：-
- Grade：-
Common Mode Chokes datasheet and documents for ICM0603ER900V
Common Mode Chokes Overview
The Vishay Dale ICM0603ER900V is a single-channel common mode choke designed for surface mount technology. It features a ferrite core and operates within a temperature range of -40°C to +125°C. The component exhibits an impedance of 90 Ohms with a tolerance of 25% at a test frequency of 100 MHz. Its maximum DC resistance is specified at 145 mOhms. The device is housed in a compact 0603 package, measuring 1.6 mm in length, 0.85 mm in width, and 1.25 mm in height.
Common Mode Chokes Feature Summary
- Utilizes a ferrite core material for effective common mode noise suppression.
- Designed for surface mount installation on printed circuit boards.
- Capable of operating reliably across a wide industrial temperature range.
Common Mode Chokes Applications
- DC/DC Power Supplies
Common Mode Chokes Procurement Notes
Verify the specific suffix 'E3' confirms lead-free compliance when reviewing official documentation. Confirm that the 0603 footprint dimensions align precisely with the target PCB layout constraints. Ensure the selected vendor provides authentic components from authorized distribution channels to guarantee performance integrity and traceability.
Common Mode Chokes Selection Notes
Select this component when space-constrained designs require a 0603 form factor. The 90 Ohm impedance rating suits applications targeting specific high-frequency noise profiles. Verify that the 145 mOhms DC resistance meets the power loss requirements of the circuit design before finalizing the selection.
Common Mode Chokes Part Context
This part belongs to the Vishay Dale ICM0603 series of common mode chokes. The series offers various impedance values within the same physical envelope. This specific model provides a balanced solution for filtering applications where moderate impedance is required alongside minimal spatial footprint.
Common Mode Chokes Replacement Considerations
Consult the manufacturer datasheet for direct substitutes within the ICM0603 series offering different impedance ratings. Cross-reference with other manufacturers producing 0603 common mode chokes only if pin compatibility and electrical parameters are identical.
