IL 716T-3E
Search Product
Search Post
— IC芯片 | 连接器 | 传感器 | 被动器件 —
Consult the customer manager about the wholesale price.
consultation hotline：86-132-6715-2157
email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.
Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.
Product Detailed Parameters
- Description：DGTL ISOLTR 2.5KV 4CH GP 16-SOIC
- Series：IsoLoop®
- Mfr：NVE Corp/Isolation Products
- Package：Tube
- Number of Channels：4
- Voltage - Isolation：2500Vrms
- Rise / Fall Time (Typ)：1ns, 1ns
- Operating Temperature：-40°C ~ 125°C
- Mounting Type：Surface Mount

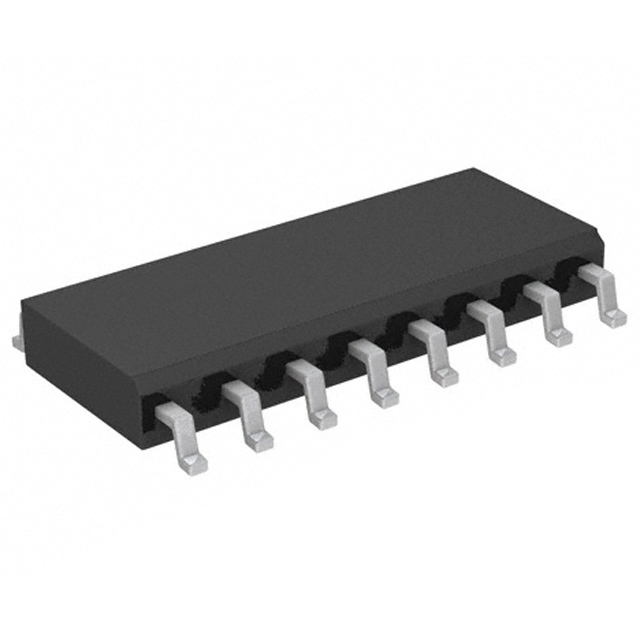

- Package / Case：16-SOIC (0.154", 3.90mm Width)
- Supplier Device Package：16-SOIC
- Grade：-
- Qualification：-
Download product information
Overview
The IL716T-3E is a general-purpose digital isolator from NVE utilizing Giant Magnetoresistive (GMR) technology. It features four isolated channels with a maximum data rate of 110 Mbps and an isolation voltage of 2500 Vrms. The device operates within a supply voltage range of 3V to 5.5V and supports a maximum input current of 10 μA. It is housed in a 16-pin SOIC package designed for surface mount installation, ensuring reliable signal transmission across electrical barriers.
Feature Summary
- Employs GMR technology for internal DC signal processing, resulting in minimal self-generated EMC noise compared to capacitive alternatives.
- Provides high common-mode transient immunity to maintain signal integrity in electrically noisy environments.
- Features ultra-low quiescent current consumption, significantly reducing power requirements in battery-operated or energy-sensitive applications.
Applications
- Industrial automation and control systems requiring robust galvanic isolation
- Medical equipment needing safe patient isolation and low power consumption
- Power electronics monitoring and gate drive circuits
- Data acquisition systems interfacing high-voltage sensors with low-voltage processors
Procurement Notes
Verify the specific suffix 'T' against official NVE documentation to confirm tape-and-reel packaging status, as distributor listings may vary. Ensure compliance with RoHS directives if required by your project specifications. Cross-reference the manufacturer part number directly with NVE datasheets to avoid confusion with similar models like the IL716-3E or IL716E which may have different packaging or minor parameter variations.
Selection Notes
Select this component when high-speed data transmission up to 110 Mbps is required alongside strict electromagnetic compatibility constraints. The GMR technology offers superior performance over capacitive isolators in high-noise industrial settings. Consider the 16-pin SOIC footprint for PCB layout compatibility. Verify that the 2500 Vrms isolation rating meets the safety standards of the target application environment.
Part Context
The IL716T-3E belongs to NVE's IsoLoop series, leveraging proprietary GMR semiconductor materials. NVE Corporation specializes in magnetic sensor technologies and has established itself as a leader in digital isolation solutions since its founding in 1989. This series is designed for applications demanding high reliability, low power, and immunity to electromagnetic interference.
Replacement Considerations
IL716-3E: Similar 4-channel isolator; verify packaging differences.
FAQ
What technology does the IL716T-3E use for isolation?
It uses Giant Magnetoresistive (GMR) technology, which processes signals internally as DC, minimizing EMC noise generation.
Is the IL716T-3E suitable for automotive applications?
No, public documentation indicates it does not meet automotive standards.
