IL300-DEFG-X001

Transistor, Photovoltaic Output Optoisolators Overview

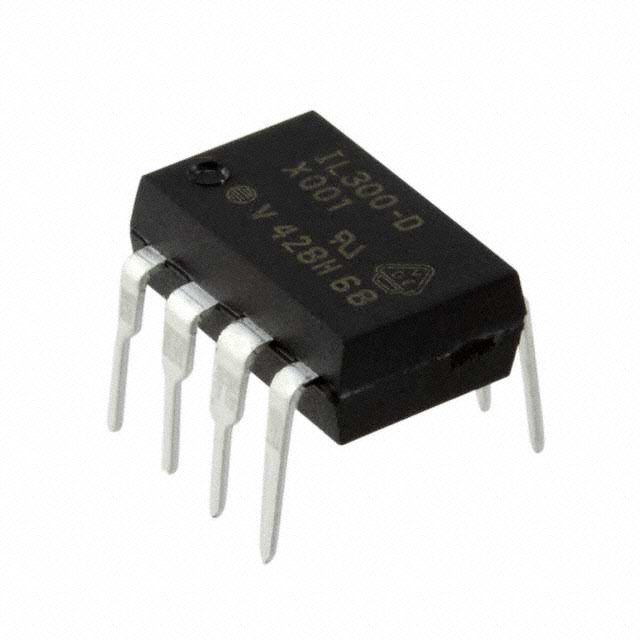

The IL300-DEFG-X001 is a high linearity optocoupler from Vishay Semiconductors, featuring a single channel with a PIN photodiode output. It operates within a temperature range of -55°C to +100°C and provides an insulation voltage of 5300 Vrms. Key electrical parameters include a current transfer ratio of 0.5% to 1.1%, forward current of 10 mA, and forward voltage of 1.25 V. The device exhibits rise and fall times of 1.75 µs, with a power dissipation of 210 mW. It is housed in a DIP-8 through-hole package.

Transistor, Photovoltaic Output Optoisolators Feature Summary

• High linearity performance for accurate signal transmission
• Wide bandwidth capability supporting fast switching speeds
• High gain characteristics enhancing signal integrity
• Robust isolation with 5300 Vrms insulation voltage

Transistor, Photovoltaic Output Optoisolators Applications

• Precision analog signal isolation in industrial control systems
• Linear feedback loops in power supply regulation circuits
• Medical equipment requiring high safety isolation standards
• Test and measurement instrumentation for accurate data acquisition

Transistor, Photovoltaic Output Optoisolators Procurement Notes

Verify the specific suffix DEFG against the official Vishay datasheet to ensure correct packaging and binning specifications. Confirm that the DIP-8 through-hole package aligns with your PCB layout requirements. Check RoHS compliance status as indicated in the manufacturer documentation before finalizing procurement orders.

Transistor, Photovoltaic Output Optoisolators Selection Notes

Select this component when high linearity and wide bandwidth are critical for analog signal transmission. Ensure the 5300 Vrms isolation rating meets system safety requirements. Consider the 1.75 µs switching speed for application timing constraints. Verify thermal management capabilities given the 210 mW power dissipation limit in enclosed environments.

Transistor, Photovoltaic Output Optoisolators Part Context

This part belongs to the IL300 series of high linearity optocouplers designed by Vishay Semiconductor Opto Division. The series is engineered for applications demanding precise linear response over a wide dynamic range. The IL300-DEFG-X001 variant specifically utilizes a PIN photodiode output configuration, distinguishing it from other variants in the family that may use different detector types or packaging options.

Transistor, Photovoltaic Output Optoisolators Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Consult Vishay technical support for direct replacements or cross-reference compatible high linearity optocouplers with similar isolation voltages and linearity specifications.
