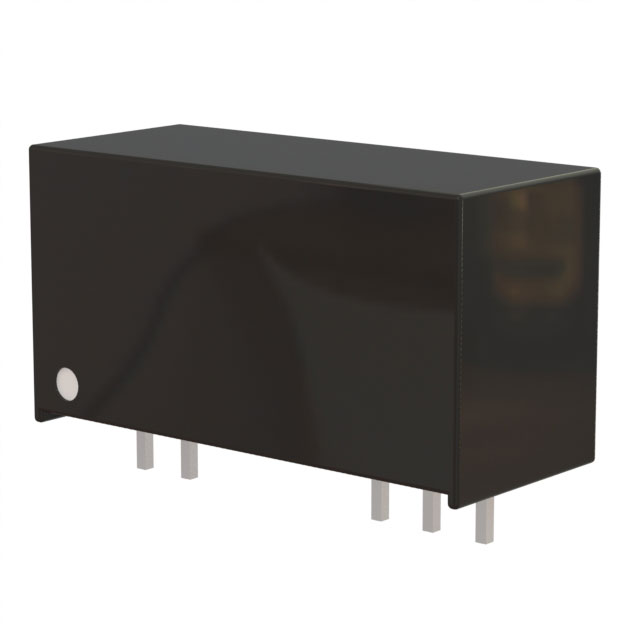

IW0509SA

IW0509SA is listed in the DC DC Converters range at ChipApex. The manufacturer field lists XP Power. Its product description is DC DC CONVERTER 9V 1W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for IW0509SA

• Description：DC DC CONVERTER 9V 1W
• Series：IW (1W)
• Mfr：XP Power
• Package：Tube
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：4.5V
• Voltage - Input (Max)：9V
• Voltage - Output 1：9V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：111mA
• Power (Watts)：1 W
• Voltage - Isolation：1 kV
• Applications：ITE (Commercial)
• Features：SCP
• Operating Temperature：-40°C ~ 100°C (With Derating)
• Efficiency：70%
• Mounting Type：Through Hole
• Package / Case：8-SIP Module, 5 Leads
• Size / Dimension：0.86" L x 0.36" W x 0.44" H (21.9mm x 9.2mm x 11.1mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：-
• Standard Number：62368-1
• Grade：-
• Qualification：-
