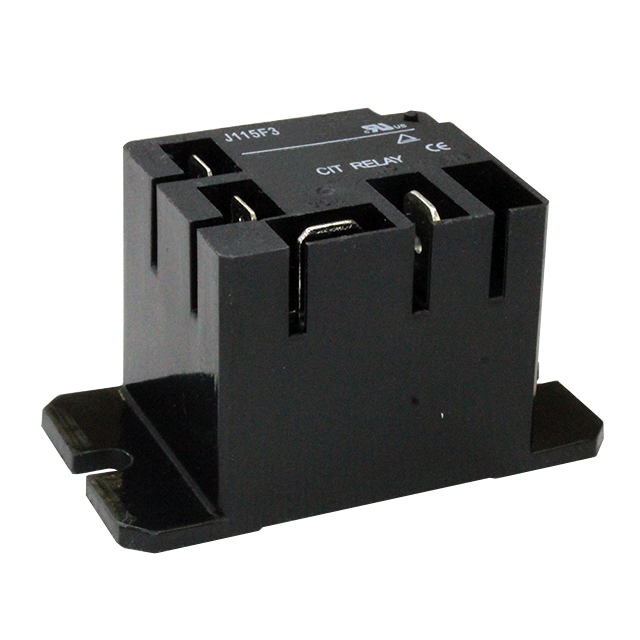

J115F31C110VACS

J115F31C110VACS is listed in the Power Relays, Over 2 Amps range at ChipApex. The manufacturer field lists CIT Relay and Switch. Its product description is RELAY GEN PURPOSE SPDT 40A 110V. Review the specifications below when checking this part for your BOM.

Power Relays, Over 2 Amps specifications for J115F31C110VACS

• Description：RELAY GEN PURPOSE SPDT 40A 110V
• Series：J115F3
• Mfr：CIT Relay and Switch
• Package：Tray
• Mounting Type：Chassis Mount
• Coil Voltage：110VAC
• Contact Form：SPDT (1 Form C)
• Contact Rating (Current)：40 A
• Switching Voltage：277VAC, 110VDC - Max
• Load - Max Switching：11080VA, 4400W
• Coil Current：46.6 mA
• Coil Type：Non Latching
• Features：-
• Termination Style：Quick Connect - 0.187"/0.250"
• Seal Rating：Sealed - Fully
• Coil Insulation：Class F
• Must Operate Voltage：82.5 VAC
• Must Release Voltage：33 VAC
• Operating Temperature：-55°C ~ 125°C
• Contact Material：Silver Tin Oxide (AgSnO)
• Approval Agency：cURus, TUV
• Relay Type：General Purpose
• Grade：-
• Qualification：-
• Operate Time：15 ms
• Release Time：10 ms
