JANTX1N4119UR-1

Single Zener Diodes Overview

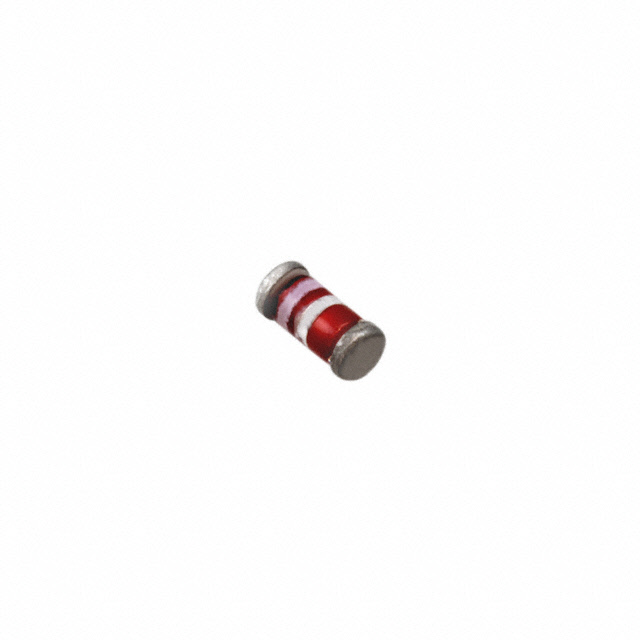

The JANTX1N4119UR-1 is a Zener diode manufactured by MACOM Technology Solutions. It features a nominal reference voltage of 28V and a maximum power dissipation of 0.5W. The device utilizes silicon technology and is housed in a DO-213AA MELF-2 surface-mount package. It is designed for unidirectional voltage regulation applications.

Single Zener Diodes Feature Summary

• Provides stable voltage regulation at a nominal 28V level
• Utilizes silicon-based Zener technology for reliable performance
• Designed for surface-mount installation via the DO-213AA package

Single Zener Diodes Applications

• Voltage regulation circuits
• Reference voltage generation
• Overvoltage protection

Single Zener Diodes Procurement Notes

Verify the manufacturer origin, as this part number may be sourced from multiple suppliers including Microsemi or Cobham. Confirm the specific suffix designation matches the required tolerance and packaging specifications. Ensure compliance with relevant environmental standards before procurement.

Single Zener Diodes Selection Notes

Select this component when a 28V Zener diode is required in a compact surface-mount form factor. Consider the 0.5W power rating and silicon construction for suitability in standard voltage regulation tasks. Verify that the DO-213AA package dimensions fit the target PCB layout constraints.

Single Zener Diodes Part Context

This component belongs to the broader category of Zener diodes used for voltage control. It serves as a fundamental passive semiconductor device within electronic circuits, distinct from active components like RF amplifiers or integrated circuits found in the same manufacturer's portfolio.
