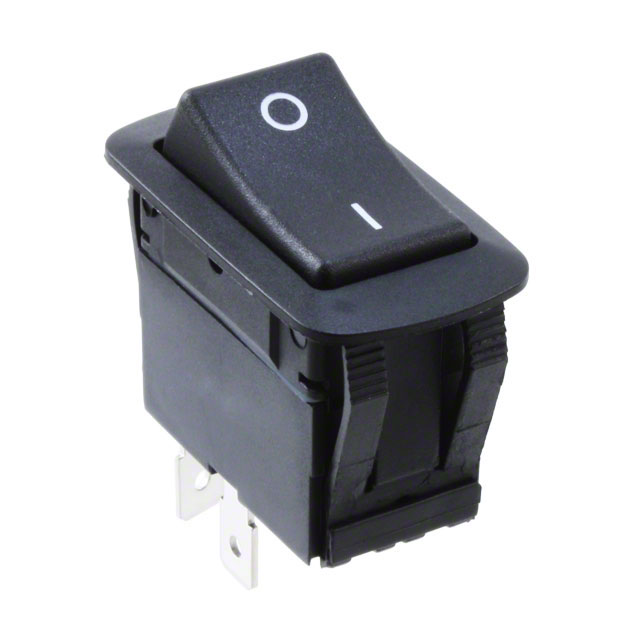

KGC2ANB1BBD

KGC2ANB1BBD is listed in the Rocker Switches range at ChipApex. The manufacturer field lists ZF Electronics. Its product description is SWITCH ROCKER SPST 20A 125V. Review the specifications below when checking this part for your BOM.

Rocker Switches specifications for KGC2ANB1BBD

• Description：SWITCH ROCKER SPST 20A 125V
• Series：KG
• Mfr：ZF Electronics
• Package：Box
• Mounting Type：Panel Mount, Snap-In
• Circuit：SPST
• Switch Function：On-Off
• Current Rating (Amps)：20A (AC), 21A (DC)
• Voltage Rating - AC：125 V
• Voltage Rating - DC：14 V
• Actuator Type：Concave (Curved)
• Color - Actuator/Cap：Black
• Actuator Marking：O -
• Illumination Type, Color：-
• Illumination Voltage (Nominal)：-
• Termination Style：Quick Connect - 0.250" (6.3mm)
• Ingress Protection：IP56 - Dust Protected, Water Resistant
• Features：-
• Panel Cutout Dimensions：Rectangular - 36.60mm x 21.20mm
• Operating Temperature：-20°C ~ 85°C
• Approval Agency：-

Rocker Switches datasheet and documents for KGC2ANB1BBD
