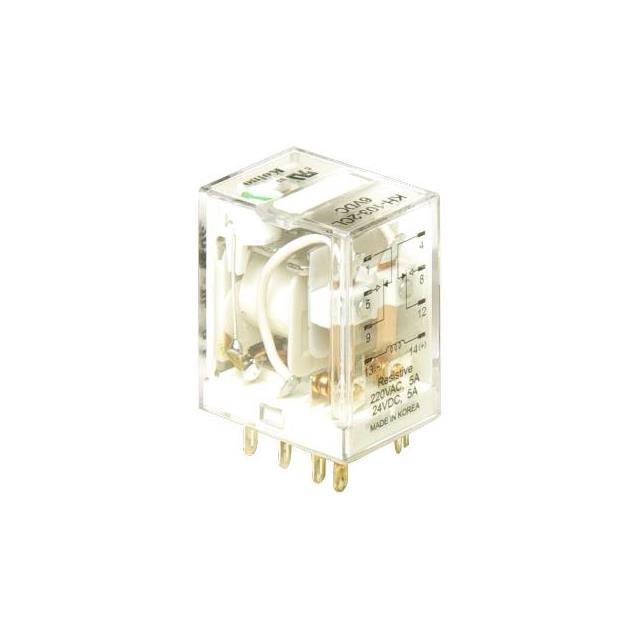

KH-103-2CD-DC24V

KH-103-2CD-DC24V is listed in the Power Relays, Over 2 Amps range at ChipApex. The manufacturer field lists KOINO. Its product description is RELAY GEN PURPOSE 4PDT 10A 24V. Review the specifications below when checking this part for your BOM.

Power Relays, Over 2 Amps specifications for KH-103-2CD-DC24V

• Description：RELAY GEN PURPOSE 4PDT 10A 24V
• Series：KH-103
• Mfr：KOINO
• Package：Bulk
• Mounting Type：Socketable
• Coil Voltage：24VDC
• Contact Form：DPDT (2 Form C)
• Contact Rating (Current)：10:00 AM
• Switching Voltage：220VAC, 24VDC - Max
• Load - Max Switching：120W
• Coil Current：36.9 mA
• Coil Type：Non Latching
• Features：Diode
• Termination Style：Plug In, Quick Connect - 0.102" (2.6mm)
• Seal Rating：-
• Coil Insulation：-
• Must Operate Voltage：19.2 VDC
• Must Release Voltage：7.2 VDC
• Operating Temperature：-10°C ~ 40°C
• Contact Material：Phosphor Bronze, Polybutylene Succinate (PBS)
• Approval Agency：CCC, cURus
• Relay Type：General Purpose
• Grade：-
• Qualification：-
• Operate Time：20 ms
• Release Time：20 ms

Power Relays, Over 2 Amps datasheet and documents for KH-103-2CD-DC24V
