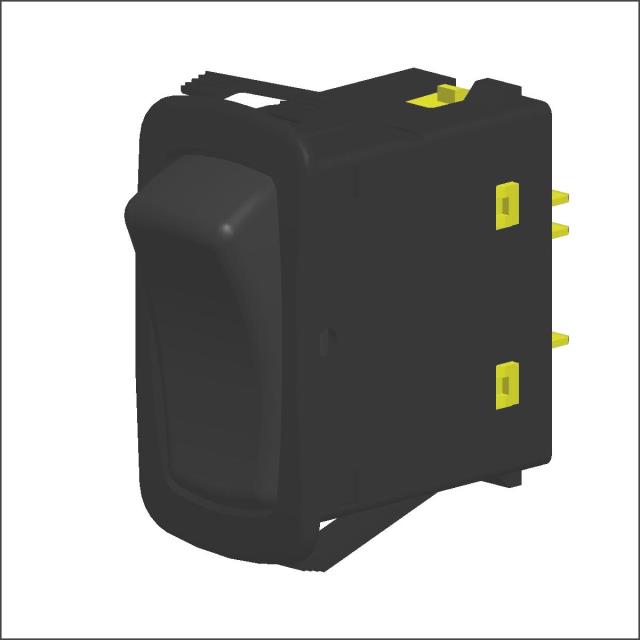

Rocker Switches L14D1S001-AZZ00-000 product image

L14D1S001-AZZ00-000

$12.09

Description：SWITCH ROCKER SPDT 20A 12V
Series：L
Mfr：Carling Technologies
Package：Box

SKU:33bd79ee4c00 Category: Rocker Switches Brand: Carling Technologies

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

L14D1S001-AZZ00-000 is listed in the Rocker Switches range at ChipApex. The manufacturer field lists Carling Technologies. Its product description is SWITCH ROCKER SPDT 20A 12V. Review the specifications below when checking this part for your BOM.

Rocker Switches specifications for L14D1S001-AZZ00-000

Description：SWITCH ROCKER SPDT 20A 12V
Series：L
Mfr：Carling Technologies
Package：Box
Mounting Type：Panel Mount, Snap-In
Circuit：SPDT
Switch Function：On-On
Current Rating (Amps)：20A (DC)
Voltage Rating - AC：-
Voltage Rating - DC：12 V
Actuator Type：Concave (Curved)
Color - Actuator/Cap：Black
Actuator Marking：No Marking
Illumination Type, Color：-
Illumination Voltage (Nominal)：-
Termination Style：Quick Connect - 0.250" (6.3mm)
Ingress Protection：IP67 - Dust Tight, Waterproof
Features：-
Panel Cutout Dimensions：Rectangular - 44.04mm x 22.02mm
Operating Temperature：-40°C ~ 85°C
Approval Agency：-

Rocker Switches datasheet and documents for L14D1S001-AZZ00-000

L14D1S001-AZZ00-000

Explore related parts through Switches, all product categories, ChipApex homepage.

Online and offline orders are supported. If the item is available for online purchase, you can place it in the cart; for wholesale pricing, please contact our product manager for a quote.

Payment Method

Payment methods: T/T, WeChat Pay, credit cards, Google Pay, Apple Pay . Buyer covers shipping, fees, duties, and taxes; contact our product manager if you need a contract/procurement process.

Delivery time

In-stock items usually ship within 24 hours. Otherwise, shipment is arranged 1 to 2 days after the items arrive at our warehouse. Timing depends on destination and shipping method.

Freight calculation

Freight cost depends on destination, package size, and weight . We offer shipping options via DHL, FedEx, UPS, and TNT , and can ship using your freight account upon request.

Mode of Transportation

We ship via DHL, FedEx, UPS, and TNT. If you prefer a specific logistics provider, we can ship using your designated carrier.

Return and Refund

Returns are accepted within 60 days of invoice with RMA approval. Items must be resalable; original invoice and test report are required. No returns for customer errors.
