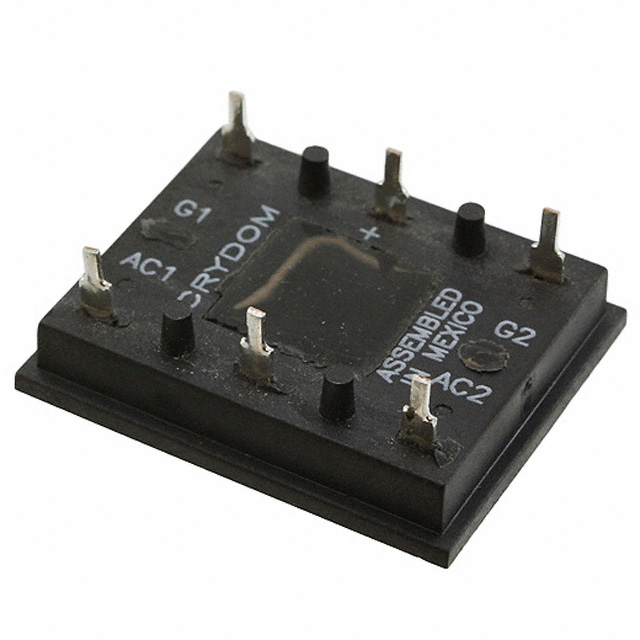

L613F

Description：MODULE SCR/DIO 42.5A 280VAC PCB
Series：L

SKU:2e9602a160a6 Category: SCRs - Modules Brand: Sensata-Crydom

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

L613F is listed in the SCRs - Modules range at ChipApex. The manufacturer field lists Sensata-Crydom. Its product description is MODULE SCR/DIO 42.5A 280VAC PCB. Review the specifications below when checking this part for your BOM.

SCRs - Modules specifications for L613F

Description：MODULE SCR/DIO 42.5A 280VAC PCB
Series：L
Mfr：Sensata-Crydom
Package：Bulk
Structure：Bridge, Single Phase - SCRs/Diodes (Layout 1)
Number of SCRs, Diodes：2 SCRs, 2 Diodes
Voltage - Off State：800 V
Current - On State (It (AV)) (Max)：-
Current - On State (It (RMS)) (Max)：-
Current - Non Rep. Surge 50, 60Hz (Itsm)：600A @ 60Hz
Operating Temperature：-40°C ~ 125°C (TJ)
Mounting Type：Through Hole
Package / Case：Module
Voltage - Gate Trigger (Vgt) (Max)：3 V
Current - Gate Trigger (Igt) (Max)：100 mA
Current - Hold (Ih) (Max)：-
Grade：-
Qualification：-

SCRs - Modules datasheet and documents for L613F

L613F

SCRs - Modules Overview

The Sensata-Crydom L613F is a half-controlled bridge rectifier module designed for printed circuit board connections. It features an SCR/diode configuration with a free-wheeling diode. The maximum DC output current is 42.5 A, and the gate trigger current (Igt) is 80 mA. The module supports a maximum reverse voltage of 800 V and a maximum forward voltage drop of 1.6 V. It utilizes a low-profile design suitable for through-hole mounting.

SCRs - Modules Feature Summary

Half-controlled bridge rectifier topology
Integrated free-wheeling diode
Low-profile construction

SCRs - Modules Applications

Power supply circuits
Motor control systems
Industrial automation equipment

SCRs - Modules Procurement Notes

Verify the specific datasheet version to confirm thermal resistance values and pinout configurations before integration. Ensure that the PCB layout accommodates the required current density and heat dissipation needs associated with the 42.5 A rating. Cross-reference the 800 V blocking voltage against peak line voltages in the target application to prevent breakdown.

SCRs - Modules Selection Notes

Select this component when a compact, high-current half-controlled rectification solution is required. The integrated free-wheeling diode simplifies circuit design by handling inductive load flyback currents. Consider the 80 mA gate trigger requirement for driver circuit compatibility. Evaluate thermal management strategies given the power dissipation at full load.

SCRs - Modules Part Context

The L613F belongs to the Crydom L Series of discrete semiconductor modules. This series offers various bridge circuits and AC switch versions. These modules are engineered for robust performance in industrial environments. The L613F specifically addresses applications needing controlled rectification with high current capacity in a space-constrained form factor.
