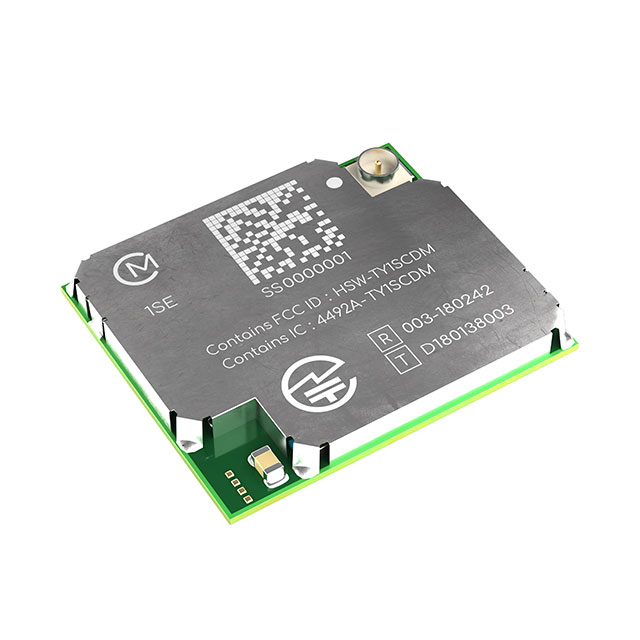

LBAD0ZZ1SE-743

Description：RF TXRX MODULE U.FL SMD
Series：-
Mfr：Murata Electronics
Package：Box

SKU:5963c76b100b Category: RF Transceiver Modules and Modems Brand: Murata Electronics

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

LBAD0ZZ1SE-743 is listed in the RF Transceiver Modules And Modems range at ChipApex. The manufacturer field lists Murata Electronics. Its product description is RF TXRX MODULE U.FL SMD. Review the specifications below when checking this part for your BOM.

RF Transceiver Modules And Modems specifications for LBAD0ZZ1SE-743

Description：RF TXRX MODULE U.FL SMD
Series：-
Mfr：Murata Electronics
Package：Box
RF Family/Standard：-
Protocol：LTE CAT M1/NB-IoT (Global)
Modulation：-
Frequency：703MHz ~ 960MHz, 1.71GHz ~ 2.17GHz
Data Rate：-
Power - Output：23dBm
Sensitivity：-103dBm
Serial Interfaces：ADC, GPIO, I2C, PWM, SPI, UART
Antenna Type：Antenna Not Included, U.FL
Utilized IC / Part：STM32L462RE
Memory Size：1MB Flash
Voltage - Supply：3.3V ~ 5V
Current - Receiving：-
Current - Transmitting：-
Mounting Type：Surface Mount
Operating Temperature：-40°C ~ 85°C
Package / Case：Module

RF Transceiver Modules And Modems datasheet and documents for LBAD0ZZ1SE-743

LBAD0ZZ1SE-743

RF Transceiver Modules And Modems Overview

The LBAD0ZZ1SE-743 is a cellular IoT module manufactured by Murata Electronics, designed for NB-IoT and LTE connectivity. It operates within frequency ranges of 703 MHz to 960 MHz and 1.71 GHz to 2.17 GHz. The module supports an operating supply voltage of 3.3 V to 5 V and features digital interfaces including I2C, UART, and SPI. It includes an integrated u.FL antenna connector and measures 18 mm x 15.4 mm x 1.8 mm. The device functions reliably within a temperature range of -40°C to +85°C.

RF Transceiver Modules And Modems Feature Summary

Supports NB-IoT and LTE protocols for global cellular connectivity
Integrates OpenMCU architecture with onboard antenna connector
Provides multiple digital communication interfaces including I2C, UART, and SPI

RF Transceiver Modules And Modems Applications

NB-IoT sensor networks
LTE-based IoT tracking devices
Smart metering systems
Industrial telemetry modules

RF Transceiver Modules And Modems Procurement Notes

Verify the specific regional band support required for your deployment against the datasheet specifications. Confirm that the host system provides the necessary 3.3 V to 5 V supply voltage and compatible interface signals. Ensure mechanical clearance accommodates the module dimensions and antenna connector type. Check for any recent product discontinuance notifications from the manufacturer before finalizing procurement plans.

RF Transceiver Modules And Modems Selection Notes

Select this module when compact size and integrated antenna are critical design constraints. It is suitable for applications requiring both NB-IoT and LTE capabilities within a single form factor. Consider the thermal management requirements given the specified operating temperature range. Evaluate the available digital interfaces to ensure compatibility with the primary microcontroller or processor in the target system.

RF Transceiver Modules And Modems Part Context

This component belongs to Murata's LBAD series of ultra-small cellular modules. These modules are engineered for high integration, combining RF transceiver functionality with an open MCU architecture. The series targets the growing market for constrained IoT devices needing reliable wide-area connectivity without complex external RF design.
