LCAT7094-02

Attenuators Overview

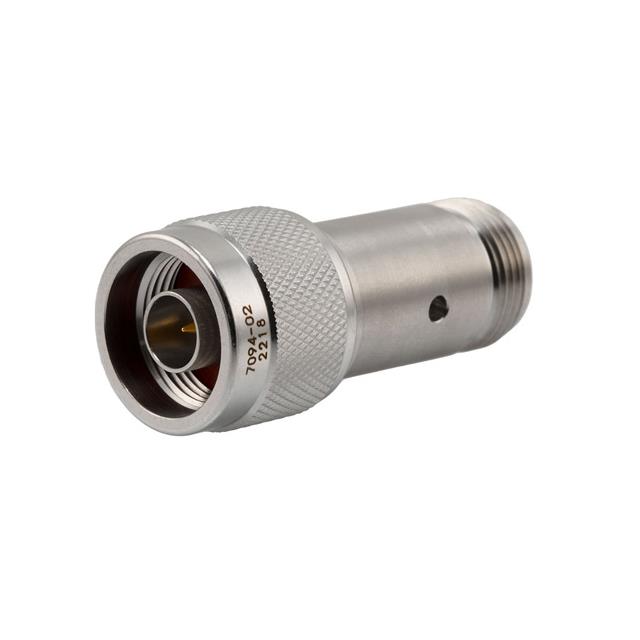

The LCAT7094-02 is a fixed RF attenuator manufactured by L-com, designed for signal level reduction in radio frequency circuits. It provides a nominal attenuation of 2 dB with a frequency range extending from 0 Hz to 18 GHz. The component operates at a maximum power rating of 2 Watts and maintains a characteristic impedance of 50 Ohms. It features N-Type male to female connectors for inline module integration. The unit is constructed with a stainless steel body and complies with RoHS3 standards.

Attenuators Feature Summary

• Provides precise 2 dB signal attenuation across a wide DC to 18 GHz bandwidth
• Supports up to 2 Watts continuous wave power handling capacity
• Features robust stainless steel construction for durability
• Utilizes N-Type male to female connector interface for seamless integration

Attenuators Applications

• RF test and measurement equipment requiring precise signal reduction
• Wireless communication systems operating within the specified frequency range
• Cable television distribution networks needing signal leveling
• Laboratory setups for characterizing high-frequency components

Attenuators Procurement Notes

Verify the specific part number LCAT7094-02 against official L-com documentation to ensure accuracy. Confirm that the required attenuation value of 2 dB aligns with system design specifications. Check connector compatibility for N-Type interfaces. Ensure environmental compliance requirements match RoHS3 standards. Review datasheet details for thermal management needs given the 2W power rating.

Attenuators Selection Notes

Select this component when a fixed 2 dB attenuation is required up to 18 GHz. Consider the 50 Ohm impedance matching for system consistency. Evaluate the 2W power handling capability against peak signal levels. Choose the N-Type connector style if it matches existing infrastructure. Verify temperature range specifications (-55 C to +125 C) for operational environments.

Attenuators Part Context

This component belongs to the LCAT series of passive RF attenuators produced by L-com. These devices are engineered for reliable performance in high-frequency applications. The series offers various attenuation values and connector types to suit different circuit requirements. The LCAT7094-02 specifically addresses needs for low-level attenuation in broadband systems.

Attenuators Replacement Considerations

Direct parameter-equivalent substitutes include ATT-0313-07-BNC-10 from Cinch Connectivity Solutions, PE7437-7 from Pasternack, and R414407000 from Radiall USA, Inc. Verify connector type compatibility as some alternatives may differ physically despite electrical equivalence.
