LCAT7396-8

Attenuators Overview

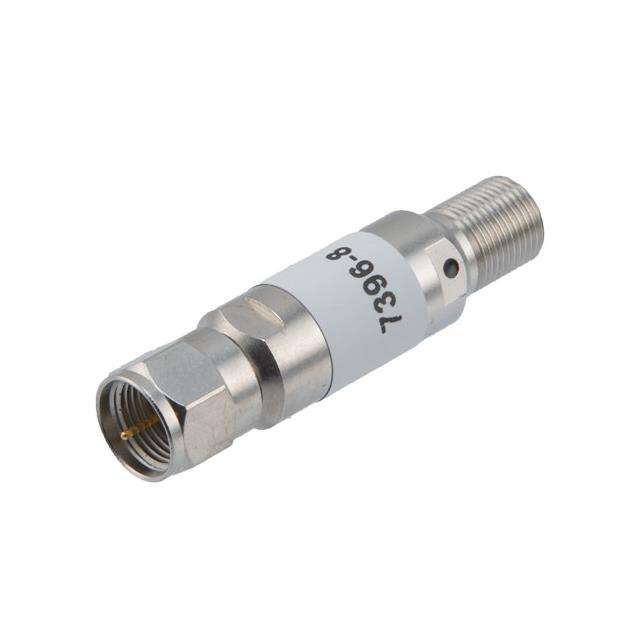

The LCAT7396-8 is an 8 dB fixed attenuator designed for RF applications within a frequency range of 0 Hz to 3 GHz. It features a 75 Ohm impedance and supports up to 2 Watts of power handling. The device utilizes F-Type connectors, specifically configured as an in-line module with male-to-female interfaces. Constructed from brass tri-metal, it measures 2.02 inches in length, 0.43 inches in width, and weighs 0.067 lbs.

Attenuators Feature Summary

• Provides precise 8 dB signal attenuation for RF systems
• Operates effectively across a broad frequency spectrum up to 3 GHz
• Engineered with robust brass tri-metal construction for durability

Attenuators Applications

• RF signal level adjustment in broadcast infrastructure
• Impedance matching in 75 Ohm video distribution networks
• Test and measurement equipment calibration

Attenuators Procurement Notes

Verify the specific connector gender configuration (F-Type Male to Female) matches your system requirements. Confirm that the 75 Ohm impedance aligns with your existing cabling infrastructure. Ensure the 2 Watt power rating exceeds the maximum expected signal power to prevent component damage. Check physical dimensions against available mounting space constraints.

Attenuators Selection Notes

Select this model when a fixed 8 dB reduction is required in 75 Ohm environments. Consider the F-Type interface compatibility with standard coaxial cables. Evaluate the 3 GHz frequency limit against your operational bandwidth needs. Assess the mechanical size and weight for integration into tight enclosures or rack-mounted setups.

Attenuators Part Context

This component belongs to the category of RF fixed attenuators manufactured by L-com. These devices are essential for managing signal strength in microwave and radio frequency circuits. The LCAT series typically offers various attenuation values and connector types to suit diverse industrial and commercial communication standards.

Attenuators Replacement Considerations

Substitute parts must maintain 8 dB attenuation, 75 Ohm impedance, and F-Type connectivity. Verify that alternative models support the same 3 GHz frequency range and 2 Watt power handling capacity. Ensure mechanical compatibility regarding length and connector orientation.
