LCV70-701-2PL-TL00

Common Mode Chokes Overview

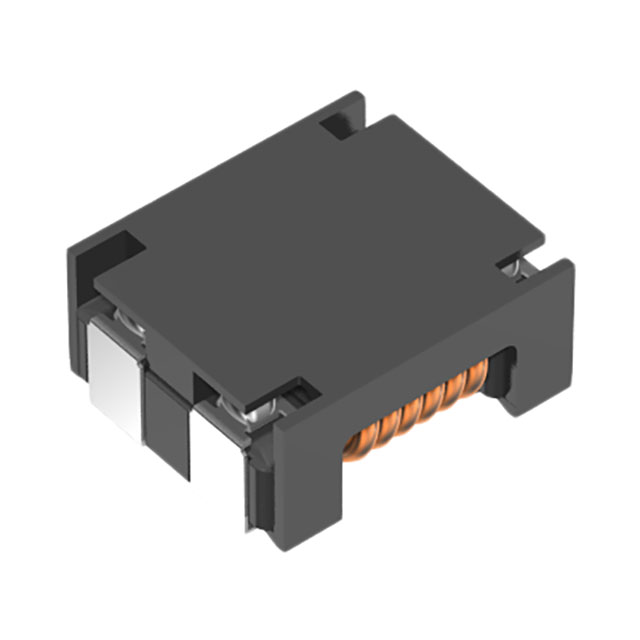

The TDK LCV70-701-2PL-TL00 is a surface-mount common mode choke designed for automotive applications. It features dual lines with an inductance of 7.5 µH at 1 MHz and an impedance of 700 Ω at 100 MHz. The component supports a maximum DC current of 4 A and has a low DC resistance of 15 mΩ. It operates within a temperature range of -40°C to +125°C and utilizes a square type closed magnetic core for miniaturization.

Common Mode Chokes Feature Summary

• Utilizes exclusive square type closed magnetic cores to achieve miniaturization while maintaining performance characteristics.
• Designed specifically for automotive grade environments, ensuring reliability under strict operational conditions.
• Provides effective filtering for both common mode and differential mode noise signals.

Common Mode Chokes Applications

• Automotive power line noise suppression
• LCV series EMC component integration
• Differential mode noise filtering in vehicle electronics

Common Mode Chokes Procurement Notes

Verify the specific part number against official TDK documentation to ensure compatibility with your design requirements. Confirm that the automotive grade certification and electrical parameters match your system specifications before procurement. Ensure storage and handling procedures adhere to manufacturer guidelines for surface-mount components.

Common Mode Chokes Selection Notes

Select this component when automotive-grade reliability and compact form factors are required for power line filtering. The 7.5 µH inductance and 4 A current rating make it suitable for applications requiring robust noise suppression without excessive size. Consider the operating temperature range and impedance characteristics to ensure effective performance in your specific circuit environment.

Common Mode Chokes Part Context

This component belongs to the LCV series of common mode chokes manufactured by TDK Corporation. The series is characterized by its use of closed magnetic cores and suitability for automotive applications. The LCV70 variant specifically offers a balance of high current handling and noise attenuation in a small surface-mount package.

Common Mode Chokes Replacement Considerations

Consult official TDK substitution guides for verified alternatives. Cross-referencing with distributor databases may provide equivalent parts, but only officially confirmed substitute part numbers should be considered for direct replacement to ensure parameter compatibility.

Common Mode Chokes FAQ

What is the operating temperature range for the LCV70-701-2PL-TL00?

The component operates effectively within a temperature range of -40°C to +125°C.

Does this component filter differential mode noise?

Yes, the module is effective for differential mode noise in addition to common mode noise.
