LDFL008123VV-V0E

Common Mode Chokes Overview

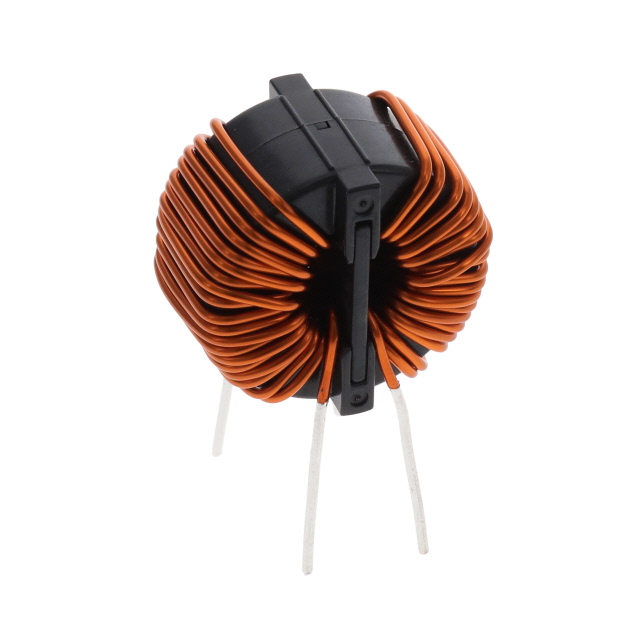

The LDFL008123VV-V0E is a toroidal common mode choke coil from the FL-V series, manufactured by Chemi-Con. It features a nanocrystalline core and through-hole mounting. The component has an inductance of 11.5 mH at 100 kHz and supports a current rating of 8 A. It operates with a DC voltage rating of 250 VDC and exhibits a maximum DC resistance (DCR) of 26 mOhm. The physical dimensions are specified as 34.00 mm in diameter and 23.5 mm in height, adhering to AEC-Q200 standards for automotive reliability.

Common Mode Chokes Feature Summary

• Utilizes a nanocrystalline core to achieve high inductance within a compact volume and reduced winding count.
• Designed for low resistance and minimal power loss, contributing to lightweight construction and suppressed stray capacitance.
• Provides effective noise suppression capabilities suitable for demanding electronic environments.

Common Mode Chokes Applications

• High-power motor control cabinets
• Automotive electronics systems requiring AEC-Q200 compliance
• Single-phase AC line filtering applications

Common Mode Chokes Procurement Notes

Verify the specific ordering suffix to ensure compatibility with required mounting configurations and lead times. Confirm that the nanocrystalline core specifications align with the thermal management requirements of the target application. Cross-reference the 26 mOhm DCR limit against system efficiency constraints before finalizing procurement decisions.

Common Mode Chokes Selection Notes

Select this component when size and weight reduction are critical alongside high inductance performance. The 8 A current rating and 250 VDC voltage specification define the operational boundaries. Ensure the through-hole mounting style matches the PCB layout and mechanical stability needs of the assembly design.

Common Mode Chokes Part Context

This part belongs to the FL-V series of toroidal common mode chokes. The series is characterized by its ability to enable high inductance with small volume and few wraps. It is designed for applications focused on size and weight reductions while maintaining stable switching characteristics and good thermal behavior.

Common Mode Chokes Replacement Considerations

Consult official substitution lists for compatible FL-V series variants. Verify that any alternative maintains the 11.5 mH inductance, 8 A current rating, and 26 mOhm DCR limits. Ensure the replacement also meets AEC-Q200 qualification if used in automotive contexts.

Common Mode Chokes FAQ

What type of core material is used in the LDFL008123VV-V0E?

The component utilizes a nanocrystalline core material.

Is this component qualified for automotive applications?

Yes, it adheres to AEC-Q200 standards.
