LDFL027282VJUV0E

Common Mode Chokes Overview

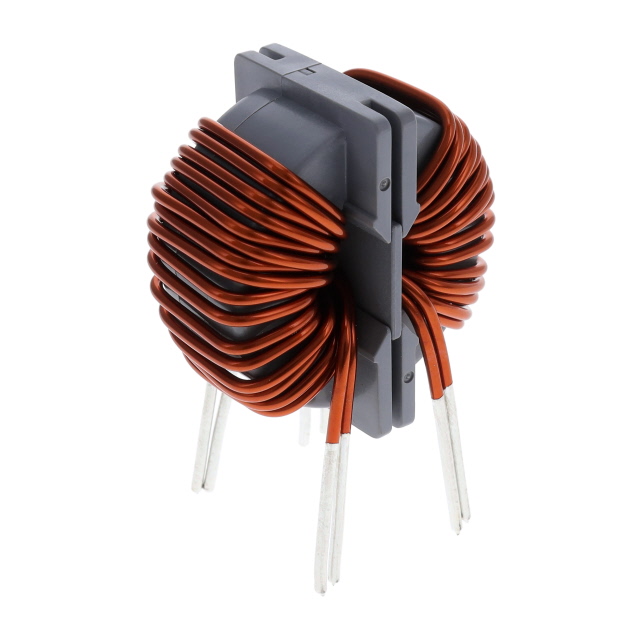

The LDFL027282VJUV0E is a common mode choke manufactured by Chemi-Con, designed for automotive applications. It features an inductance of 2.8 mH and supports a current rating of 27 A with a maximum voltage of 700 VDC. The component measures 48 x 50 x 32.5 mm and utilizes Nano Crystalline coil technology. It is certified to the AEC-Q200 standard, ensuring reliability for harsh environments.

Common Mode Chokes Feature Summary

• Utilizes Nano Crystalline core technology for high-performance filtering
• Certified to AEC-Q200 automotive qualification standards
• Designed as a surface mount alternative for traditional components

Common Mode Chokes Applications

• Automotive power supply circuits
• Common mode noise suppression
• High-current DC-DC converter inputs

Common Mode Chokes Procurement Notes

Verify the specific suffix codes against official Chemi-Con documentation to ensure correct specifications. Confirm AEC-Q200 compliance requirements for your target application. Check for any recent product change notices or obsolescence announcements directly from the manufacturer before finalizing procurement plans.

Common Mode Chokes Selection Notes

Select this component when high current handling and strict automotive reliability are required. The 27 A rating and 700 VDC capability suit robust power systems. Ensure physical dimensions fit the designated PCB area. Validate thermal management needs given the high current operation.

Common Mode Chokes Part Context

This part belongs to Chemi-Con's line of nano crystalline common mode chokes. These components are engineered to replace bulkier OS-Con or tantalum alternatives in modern surface-mount designs. The series emphasizes compact form factors while maintaining high efficiency in noise reduction for demanding electronic systems.

Common Mode Chokes Replacement Considerations

No public confirmed substitute part numbers are available in the provided data.
