LF-230N

Power Line Filter Modules Overview

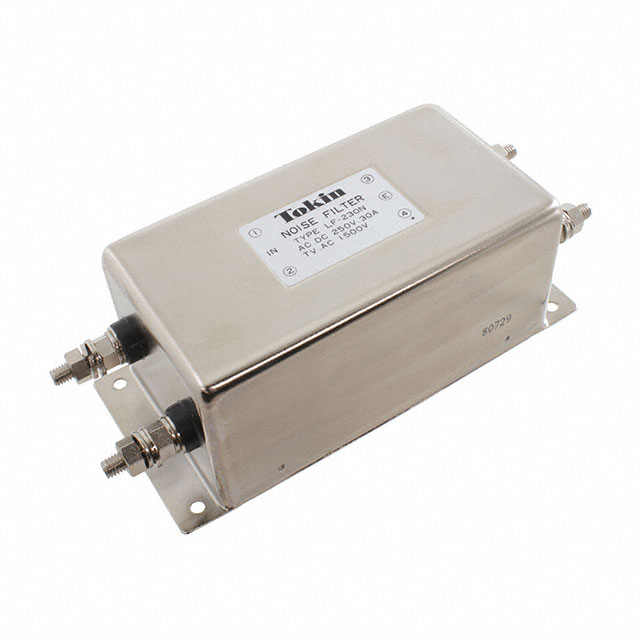

The KEMET LF-230N is a single-phase power line filter module designed for general-purpose electromagnetic interference suppression. It features a metal box construction and supports rated voltages of 250 VAC and 250 VDC. The unit handles a continuous current of 30 A and operates within a temperature range of -20°C to +55°C. Physical dimensions are 130 mm in length, 70 mm in width, and 60 mm in height. The component holds UL approval and complies with RoHS standards.

Power Line Filter Modules Feature Summary

• Single-stage filtering configuration for single-phase AC power lines
• Robust metal enclosure providing mechanical protection and shielding
• Designed for general-purpose noise attenuation in electronic equipment

Power Line Filter Modules Applications

• General-purpose electronic equipment power input stages
• Industrial control systems requiring EMI suppression
• Power supplies and converters operating at 250 VAC

Power Line Filter Modules Procurement Notes

Verify the specific current rating requirements against the 30 A limit. Confirm that the operating environment stays within the -20°C to +55°C range. Ensure the physical footprint of 130x70x60 mm fits the target assembly. Check for UL listing compliance if required by regional regulations. Validate terminal connection types for integration.

Power Line Filter Modules Selection Notes

Select this model when a pre-assembled single-phase filter solution is preferred over discrete components. It is suitable for applications needing standardized EMI performance without custom circuit design. Consider the metal housing for durability in industrial settings. Evaluate space constraints due to the larger form factor compared to board-mounted filters.

Power Line Filter Modules Part Context

This component belongs to KEMET's LF series of power line filters. These modules integrate capacitors and inductors into a single shielded unit. They simplify PCB layout and reduce assembly time. The series targets common mode and differential mode noise reduction in AC mains applications.

Power Line Filter Modules Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Verify compatibility with existing mounting hardware and terminal configurations before considering alternative manufacturers.
