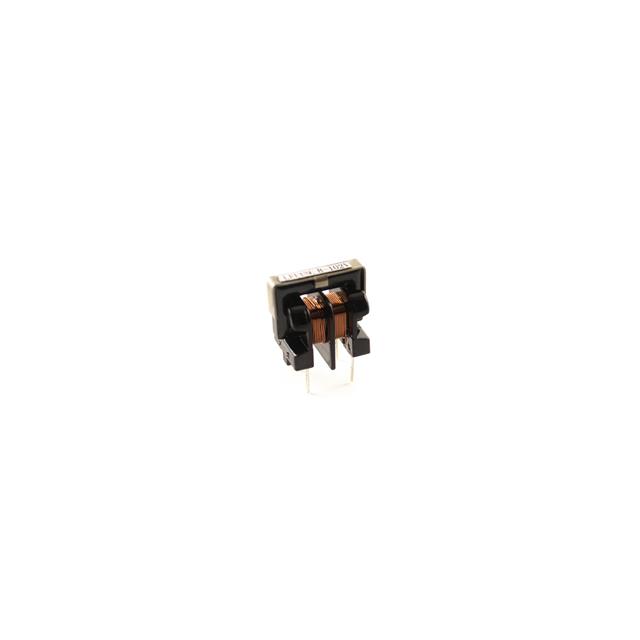

LFUU9.8-102V

$3.19

Description：CMC 1MH 2LN TH
Series：-
Mfr：Allied Components International
Package：Tray

SKU:6fbacc0fd522 Category: Common Mode Chokes Brand: Allied Components International

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

LFUU9.8-102V is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists Allied Components International. Its product description is CMC 1MH 2LN TH. Review the specifications below when checking this part for your BOM.

Common Mode Chokes specifications for LFUU9.8-102V

Description：CMC 1MH 2LN TH
Series：-
Mfr：Allied Components International
Package：Tray
Filter Type：-
Number of Lines：2
Current Rating (Max)：-
DC Resistance (DCR) (Max)：350mOhm
Voltage Rating - DC：-
Voltage Rating - AC：-
Operating Temperature：-55°C ~ 105°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Through Hole
Size / Dimension：0.669" L x 0.610" W (17.00mm x 15.50mm)
Height (Max)：0.531" (13.50mm)
Package / Case：Vertical, 4 PC Pin
Inductance @ Frequency：1 mH @ 1 kHz
Impedance @ Frequency：-
Qualification：-
Grade：-

Common Mode Chokes datasheet and documents for LFUU9.8-102V

LFUU9.8-102V

Common Mode Chokes Overview

The LFUU9.8-102V is a common mode choke manufactured by Allied Components International, categorized under passives and filters. It features a through-hole mounting configuration with two leads. The component has an inductance of 1 mH and is designed for dual-line applications.

Common Mode Chokes Feature Summary

Dual-line common mode filtering capability
Through-hole leaded construction

Common Mode Chokes Applications

Networking equipment signal line protection
Telecommunications interface circuits
Power conversion input/output filtering

Common Mode Chokes Procurement Notes

Verify the specific datasheet version from Allied Components International to confirm mechanical dimensions and electrical tolerances. Ensure the through-hole footprint matches the target PCB layout. Cross-reference the part number with authorized distributors to confirm current product status and availability constraints.

Common Mode Chokes Selection Notes

Select this component when dual-line common mode noise suppression is required in through-hole designs. Consider the 1 mH inductance value for the specific frequency range of interference to be attenuated. Verify that the physical size accommodates the assembly space constraints within the final enclosure.

Common Mode Chokes Part Context

Allied Components International specializes in magnetic components and modules for commercial and industrial markets. This part belongs to their standard passive filter lineup, supporting applications in networking and telecommunications where reliable signal integrity is maintained against common mode disturbances.
