LLQPB160807T100M

$0.10

Description：FIXED IND 10UH 220MA 2.6 OHM SMD
Series：LLQPB
Mfr：Taiyo Yuden
Package：Tape & Reel (TR)

SKU:5069e6256f9a Category: Fixed Inductors Brand: Taiyo Yuden

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

LLQPB160807T100M is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists Taiyo Yuden. Its product description is FIXED IND 10UH 220MA 2.6 OHM SMD. Review the specifications below when checking this part for your BOM.

Fixed Inductors specifications for LLQPB160807T100M

Description：FIXED IND 10UH 220MA 2.6 OHM SMD
Series：LLQPB
Mfr：Taiyo Yuden
Package：Tape & Reel (TR)
Type：Wirewound
Material - Core：Ferrite
Inductance：10 µH
Tolerance：±20%
Current Rating (Amps)：220 mA
Current - Saturation (Isat)：170mA
Shielding：Unshielded
DC Resistance (DCR)：2Ohm
Q @ Freq：-
Frequency - Self Resonant：45MHz
Ratings：-
Operating Temperature：-40°C ~ 105°C
Inductance Frequency - Test：1 MHz
Mounting Type：Surface Mount
Package / Case：0603 (1608 Metric)
Supplier Device Package：603
Size / Dimension：0.063" L x 0.031" W (1.60mm x 0.80mm)
Height - Seated (Max)：0.028" (0.70mm)
Features：-

Fixed Inductors datasheet and documents for LLQPB160807T100M

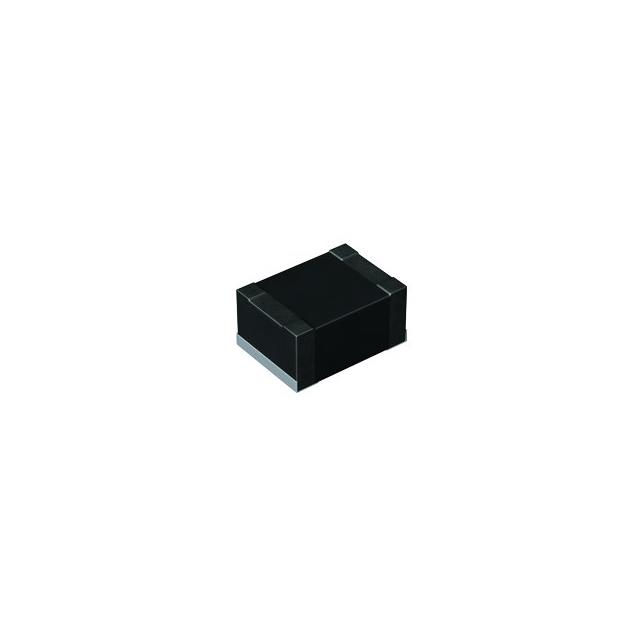

LLQPB160807T100M

Fixed Inductors Overview

The LLQPB160807T100M is a semi-shielded power inductor from Taiyo Yuden, designed for surface-mount applications. It features a ferrite core and wirewound construction within a compact 0603 (1608 metric) package measuring 1.6 x 0.8 x 0.7 mm. The component provides an inductance of 10 µH with a tolerance of ±20%. It supports a maximum DC current of 220 mA and a saturation current of 220 mA, with a maximum DC resistance of 2 Ohms. The self-resonant frequency is 45 MHz, and it operates reliably between -40°C and +105°C.

Fixed Inductors Feature Summary

Semi-shielded design to minimize electromagnetic interference
Compact 0603 footprint for space-constrained layouts
Ferrite core construction for stable performance

Fixed Inductors Applications

DC-DC converter choke coils
Power supply filtering circuits
General purpose power electronics

Fixed Inductors Procurement Notes

Verify the specific manufacturer part number against official Taiyo Yuden documentation to ensure compatibility. Confirm that the required electrical parameters, including inductance value, current ratings, and physical dimensions, align precisely with your circuit design requirements before finalizing procurement decisions.

Fixed Inductors Selection Notes

Select this component when a low-profile, semi-shielded inductor is required for power management applications. The 0603 size offers a balance between current handling capability and board space efficiency. Ensure the operating temperature range and saturation characteristics meet the specific demands of the target power circuit.

Fixed Inductors Part Context

This component belongs to the LLQPB series of fixed inductors manufactured by Taiyo Yuden. It is categorized as a surface-mount power inductor suitable for modern electronic devices requiring compact passive components. The series is designed to support various power conversion architectures in consumer and industrial electronics.
