LMK6DA15625ADLET

Oscillators Overview

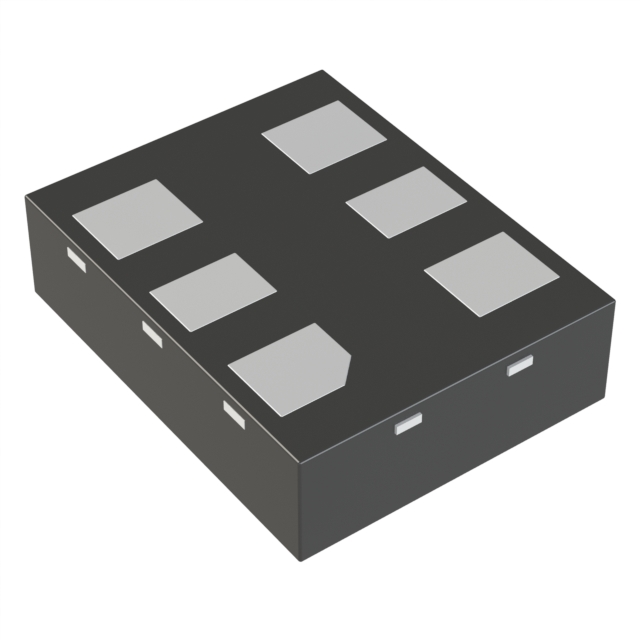

The LMK6DA15625ADLET is a standard clock oscillator from the Texas Instruments LMK6D series, utilizing bulk acoustic wave (BAW) technology. It operates at a fixed frequency of 156.25 MHz with a frequency stability of 25 ppm. The device supports dual voltage operation at 2.5 V and 3.3 V, drawing a maximum current of 58 mA. It features LVDS output format and is housed in a compact VSON-6 package measuring 2.5 mm by 2 mm by 1 mm. The component functions within an operating temperature range of -40°C to +85°C.

Oscillators Feature Summary

• High-performance differential and single-ended output oscillator supporting fixed frequencies
• Low-jitter design based on bulk acoustic wave technology
• Dual voltage capability for flexible power supply integration

Oscillators Applications

• High-speed data communication systems requiring precise timing
• Networking equipment utilizing 156.25 MHz reference clocks
• Test and measurement instruments demanding stable signal generation

Oscillators Procurement Notes

Verify the specific suffix 'LET' against official documentation to confirm package type and marking code accuracy. Ensure compatibility with the required LVDS interface and voltage levels before integration. Cross-reference the manufacturer's latest datasheet for any updates regarding pin configuration or thermal specifications.

Oscillators Selection Notes

Select this component when a low-jitter BAW oscillator is required for 156.25 MHz applications. Consider the VSON-6 package size for space-constrained designs. Verify that the 25 ppm stability meets system requirements and that LVDS outputs are compatible with downstream logic interfaces.

Oscillators Part Context

This part belongs to the LMK6D family of low-jitter, high-performance oscillators. It shares architectural similarities with other LMK6x devices but is distinguished by its specific 156.25 MHz frequency and VSON-6 packaging. The family generally targets high-speed serial link applications requiring robust clock signals.

Oscillators Replacement Considerations

LMK6DA15625ADLFR is a verified substitute within the same series offering identical electrical performance in a reel-compatible package.
