LNJ337W83RA

LED Indication - Discrete Overview

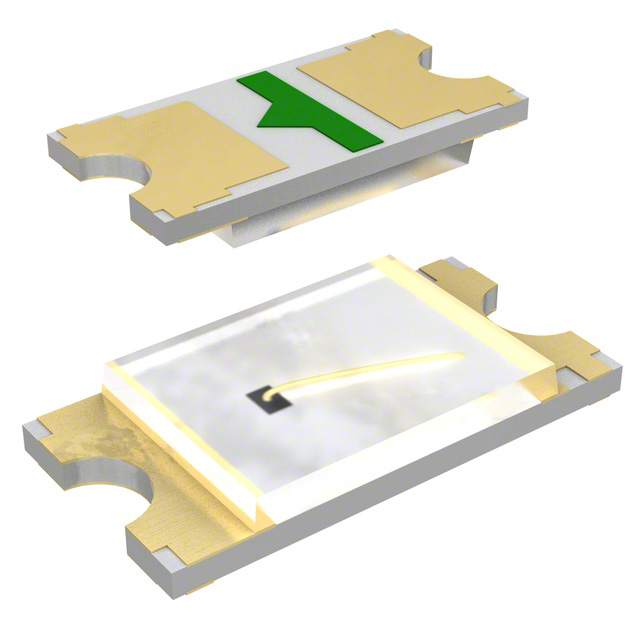

The Panasonic LNJ337W83RA is a single-color yellow-green surface-mount LED in a 0603 (1608 metric) package. It operates at a forward current of 20 mA with a forward voltage of 1.95 V and emits light at a peak wavelength of 572 nm. The component provides an optical intensity of 7.5 mcd, rated for a power dissipation of 55 mW. It features a rectangular lens measuring 1.1 mm x 0.8 mm and has a maximum height of 0.2 mm. The device functions within a temperature range of -30°C to +85°C.

LED Indication - Discrete Feature Summary

• Yellow-green emission at 572 nm
• Low profile 0.2 mm height
• High brightness output

LED Indication - Discrete Applications

• Status indication in electronic devices
• Panel indicators
• Portable equipment displays

LED Indication - Discrete Procurement Notes

Verify the specific ordering suffix to ensure correct binning and packaging configuration. Confirm moisture sensitivity level handling requirements during assembly. Check RoHS compliance documentation for regulatory adherence. Validate lead availability as this part may be discontinued or subject to long-lead constraints.

LED Indication - Discrete Selection Notes

Select this component for applications requiring a compact yellow-green indicator with low profile constraints. Ensure the driving circuit supports the specified 20 mA forward current. Verify that the operating temperature range meets the environmental demands of the target application.

LED Indication - Discrete Part Context

This LED belongs to the Panasonic LN series of surface-mount components. It is designed for high-brightness applications in small form factors. The product line emphasizes reliability and consistent optical performance across manufacturing batches.

LED Indication - Discrete Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation.
