LP3883ESX-1.2/NOPB

$2.58

Description：IC REG LINEAR 1.2V 3A TO263
Series：-
Mfr：National Semiconductor
Package：Bulk

SKU:52d16fca2340 Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Brand: National Semiconductor

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

LP3883ESX-1.2/NOPB is listed in the Voltage Regulators - Linear, Low Drop Out (LDO) Regulators range at ChipApex. The manufacturer field lists National Semiconductor. Its product description is IC REG LINEAR 1.2V 3A TO263. Review the specifications below when checking this part for your BOM.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators specifications for LP3883ESX-1.2/NOPB

Description：IC REG LINEAR 1.2V 3A TO263
Series：-
Mfr：National Semiconductor
Package：Bulk
Output Configuration：Positive
Output Type：Fixed
Number of Regulators：1
Voltage - Input (Max)：5.5V
Voltage - Output (Min/Fixed)：1.2V
Voltage - Output (Max)：-
Voltage Dropout (Max)：0.42V @ 3A
Current - Output：3A
Current - Quiescent (Iq)：30 µA
Current - Supply (Max)：8 mA
PSRR：80dB ~ 65dB (120Hz ~ 1kHz)
Control Features：Enable
Protection Features：Over Current, Over Temperature, Short Circuit
Operating Temperature：-40°C ~ 125°C
Mounting Type：Surface Mount

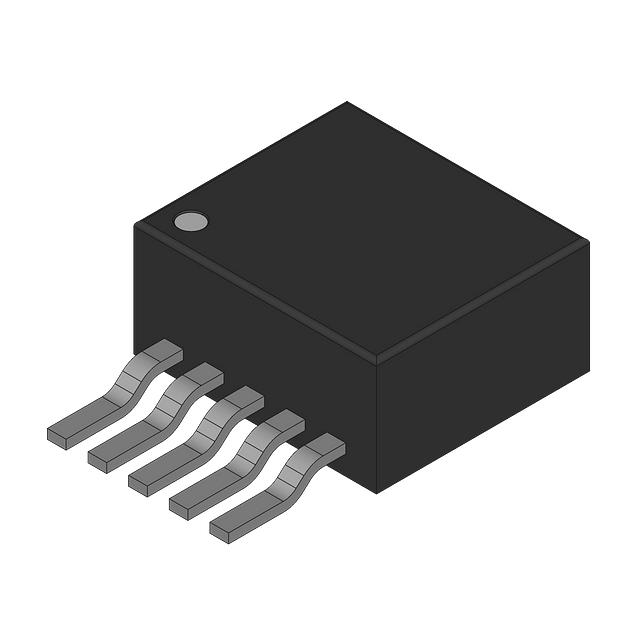

Package / Case：TO-263-6, D2PAK (5 Leads + Tab), TO-263BA
Supplier Device Package：TO-263 (DDPAK-5)
Grade：-
Qualification：-

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators datasheet and documents for LP3883ESX-1.2/NOPB

LP3883ESX-1.2/NOPB

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Overview

The LP3883ESX-1.2/NOPB is a fixed positive linear voltage regulator manufactured by Texas Instruments, formerly National Semiconductor. It provides a fixed output voltage of 1.2 V with a maximum output current of 3 A. The device features an ultra-low dropout voltage of 210 mV at full load and a typical power supply rejection ratio (PSRR) of 80 dB. It operates within a junction temperature range of -40°C to +125°C and utilizes a TO-263-5 surface-mount package.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Feature Summary

Ultra-low dropout performance for efficient voltage regulation under varying load conditions
High power supply rejection ratio to minimize noise impact on the output
Fast transient response capability to maintain stability during rapid load changes

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Applications

Portable battery-powered equipment requiring low quiescent current
Post-regulation for switching regulators in embedded systems
Circuitry demanding stable 1.2 V logic levels

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Procurement Notes

Verify the manufacturer designation as Texas Instruments, which acquired National Semiconductor. Confirm the specific suffix 'NOPB' indicates RoHS compliance and lead-free status. Ensure the package type matches the required TO-263 footprint for PCB layout compatibility before finalizing procurement orders.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Selection Notes

Select this component when a fixed 1.2 V output is required with high current capacity. Consider the thermal dissipation capabilities of the TO-263 package relative to the expected power loss. Evaluate input-to-output voltage differentials to ensure operation remains within the specified dropout limits for optimal efficiency.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Part Context

This part belongs to the LP3883 series of fast-response ultra-low dropout linear regulators. The series is characterized by high performance and robustness suitable for demanding applications. The ESX variant specifically denotes the tape-and-reel packaging format within the TO-263 family.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Replacement Considerations

LP3883ES-1.2/NOPB is a tube-packaged alternative from the same series. LP3893ESX-1.2/NOPB offers similar electrical characteristics but may differ in specific transient response parameters or internal compensation.
