LP5907UVX19/NOPB

$0.42

Description：IC REG LINEAR 1.9V 250MA 4-DSBGA
Series：-
Mfr：Texas Instruments
Package：Tape & Reel (TR),Cut Tape (CT),Bulk

SKU:41cf14bb382a Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Brand: Texas Instruments

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

LP5907UVX19/NOPB is listed in the Voltage Regulators - Linear, Low Drop Out (LDO) Regulators range at ChipApex. The manufacturer field lists Texas Instruments. Its product description is IC REG LINEAR 1.9V 250MA 4-DSBGA. Review the specifications below when checking this part for your BOM.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators specifications for LP5907UVX19/NOPB

Description：IC REG LINEAR 1.9V 250MA 4-DSBGA
Series：-
Mfr：Texas Instruments
Package：Tape & Reel (TR),Cut Tape (CT),Bulk
Output Configuration：Positive
Output Type：Fixed
Number of Regulators：1
Voltage - Input (Max)：5.5V
Voltage - Output (Min/Fixed)：1.9V
Voltage - Output (Max)：-
Voltage Dropout (Max)：0.2V @ 250mA
Current - Output：250mA
Current - Quiescent (Iq)：25 µA
Current - Supply (Max)：425 µA
PSRR：90dB ~ 60dB (100Hz ~ 100kHz)
Control Features：Enable
Protection Features：Over Temperature, Short Circuit
Operating Temperature：-40°C ~ 125°C
Mounting Type：Surface Mount

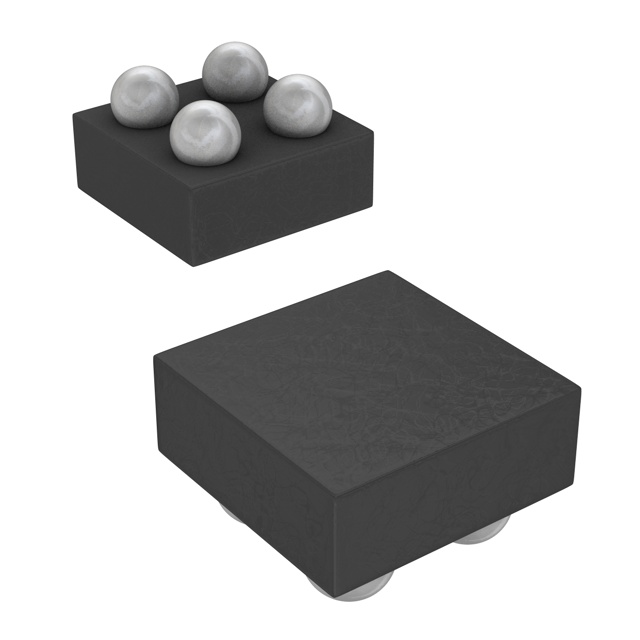

Package / Case：4-XFBGA, DSBGA
Supplier Device Package：4-DSBGA
Grade：-
Qualification：-

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators datasheet and documents for LP5907UVX19/NOPB

LP5907UVX19/NOPB

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Overview

The LP5907UVX19/NOPB is a fixed-output low-dropout linear regulator manufactured by Texas Instruments. It provides a regulated 1.9V output with a maximum continuous current of 250mA. The device operates within an input voltage range of 2.2V to 5.5V and features a typical quiescent current of 12µA. It utilizes a 4-pin DSBGA package (YKE, YKG, YKM, or YCR) and supports an operating junction temperature from –40°C to 125°C.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Feature Summary

Provides ultralow noise performance without requiring a separate noise bypass capacitor
Supports remote output capacitor placement up to 10cm away from the device
Includes thermal-overload and short-circuit protection circuitry
Features an internal automatic discharge pulldown resistor for rapid output shutdown

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Applications

RF and analog circuits
Smartphones
Tablets
Communications equipment
Digital still cameras

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Procurement Notes

Verify that the specific ordering suffix matches the required package type and output voltage tolerance. Confirm the component status is active before finalizing procurement plans. Ensure the selected variant meets the necessary environmental temperature specifications for the intended application environment.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Selection Notes

Select this component when designing power supplies for sensitive RF and analog circuits requiring minimal noise and high PSRR. It is suitable for portable applications where board space is limited due to its small footprint and stability with standard 1µF ceramic capacitors.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Part Context

This part belongs to the LP5907 family of ultralow-noise LDO regulators. The UVX19 designation indicates a fixed 1.9V output option housed in a 4-DSBGA package. The NOPB suffix confirms lead-free construction and compliance with RoHS standards.
