LPF090703A250TG

Common Mode Chokes Overview

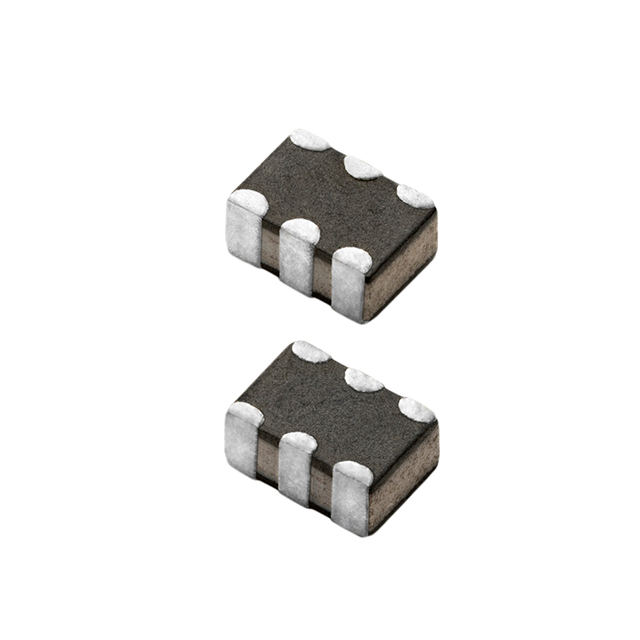

The Littelfuse LPF090703A250TG is a three-channel common mode noise filter designed for high-speed differential serial interfaces. It operates within an impedance range of 25 Ohms at a test frequency of 100 MHz, with a tolerance of 25%. The component supports a maximum DC current of 80 mA and features a maximum DC resistance of 5 Ohms. Physically, it measures 0.9 mm in length, 0.68 mm in width, and 0.45 mm in height. It functions reliably across a temperature range from -45 C to +85 C.

Common Mode Chokes Feature Summary

• Provides common mode noise filtering for high-speed differential serial interfaces
• Designed to attenuate frequencies that cause equipment damage or signal interruption
• Utilizes a compact ceramic-based surface mount package

Common Mode Chokes Applications

• C-PHY interface protection
• High-speed differential data lines
• Video signal integrity maintenance

Common Mode Chokes Procurement Notes

Verify the complete part number including the suffix TG against official Littelfuse documentation to ensure correct packaging and material specifications. Confirm that the 25 Ohm impedance rating aligns with the specific requirements of the target differential interface. Check RoHS compliance status through the manufacturer's official datasheet rather than distributor summaries.

Common Mode Chokes Selection Notes

Select this component when designing circuits requiring attenuation of common mode noise on three-channel differential pairs. Ensure the operating environment stays within the specified -45 C to +85 C range. Verify that the 80 mA current handling capacity meets the signal line requirements without causing excessive voltage drop across the 5 Ohm DC resistance.

Common Mode Chokes Part Context

This component belongs to the Littelfuse LPF Series LCF, which consists of common mode noise filters tailored for high-speed differential serial interfaces. The series addresses electromagnetic interference issues that can degrade video quality or introduce static in audio signals. These devices are engineered to maintain signal integrity in sensitive electronic applications.

Common Mode Chokes Replacement Considerations

Consult the official Littelfuse LPF Series datasheet for verified substitute part numbers. Cross-reference impedance values and channel counts to ensure functional equivalence. Do not assume compatibility based solely on physical dimensions.
