LPWI201608S2R2T

Fixed Inductors Overview

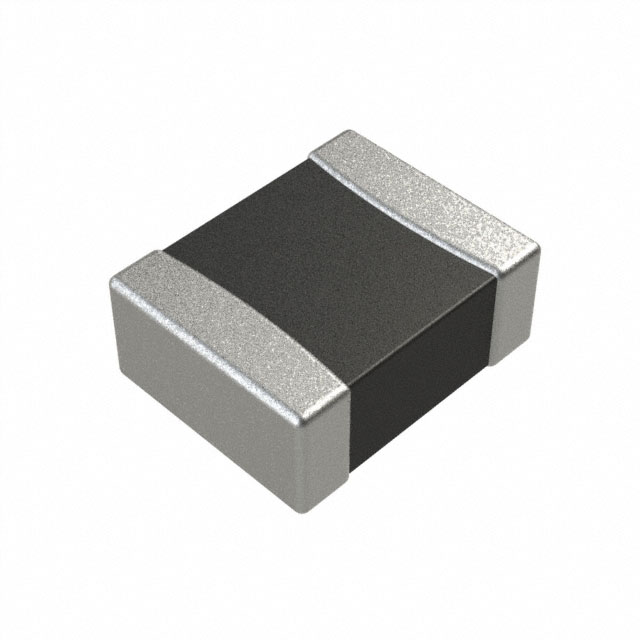

The LPWI201608S2R2T is a fixed shielded thin film inductor manufactured by Littelfuse Inc. It features an inductance of 2.2 µH with a tolerance of ±20%. The component supports a maximum DC current of 1.9 A and has a maximum DC resistance of 150 mΩ. It utilizes a surface mount package in the 0806 (2016 Metric) footprint, suitable for automated PCB assembly processes.

Fixed Inductors Feature Summary

• Shielded thin film construction to minimize electromagnetic interference
• Designed for high efficiency in power management circuits
• Surface mount configuration for compact board integration

Fixed Inductors Applications

• DC-DC converter output filtering
• Power supply input stages
• Signal integrity maintenance in consumer electronics

Fixed Inductors Procurement Notes

Verify the specific manufacturer part number against official Littelfuse documentation to ensure accuracy. Confirm that the required electrical parameters, including inductance value and current ratings, align with the design specifications. Check for RoHS compliance status if environmental regulations apply to the final product assembly.

Fixed Inductors Selection Notes

Select this component when a shielded inductor is required to prevent magnetic field interference in dense circuit layouts. Ensure the operating current does not exceed the rated 1.9 A limit to maintain performance. Verify that the 0806 footprint matches the available PCB space constraints.

Fixed Inductors Part Context

This component belongs to the LPWI series of fixed inductors from Littelfuse Inc. The series utilizes thin film technology to provide consistent performance in power applications. It is distinct from resettable polyfuse products also offered by the manufacturer.

Fixed Inductors Replacement Considerations

Consult official Littelfuse substitution guides for verified alternatives. Cross-reference compatible parts based on identical inductance, current rating, and physical dimensions.
